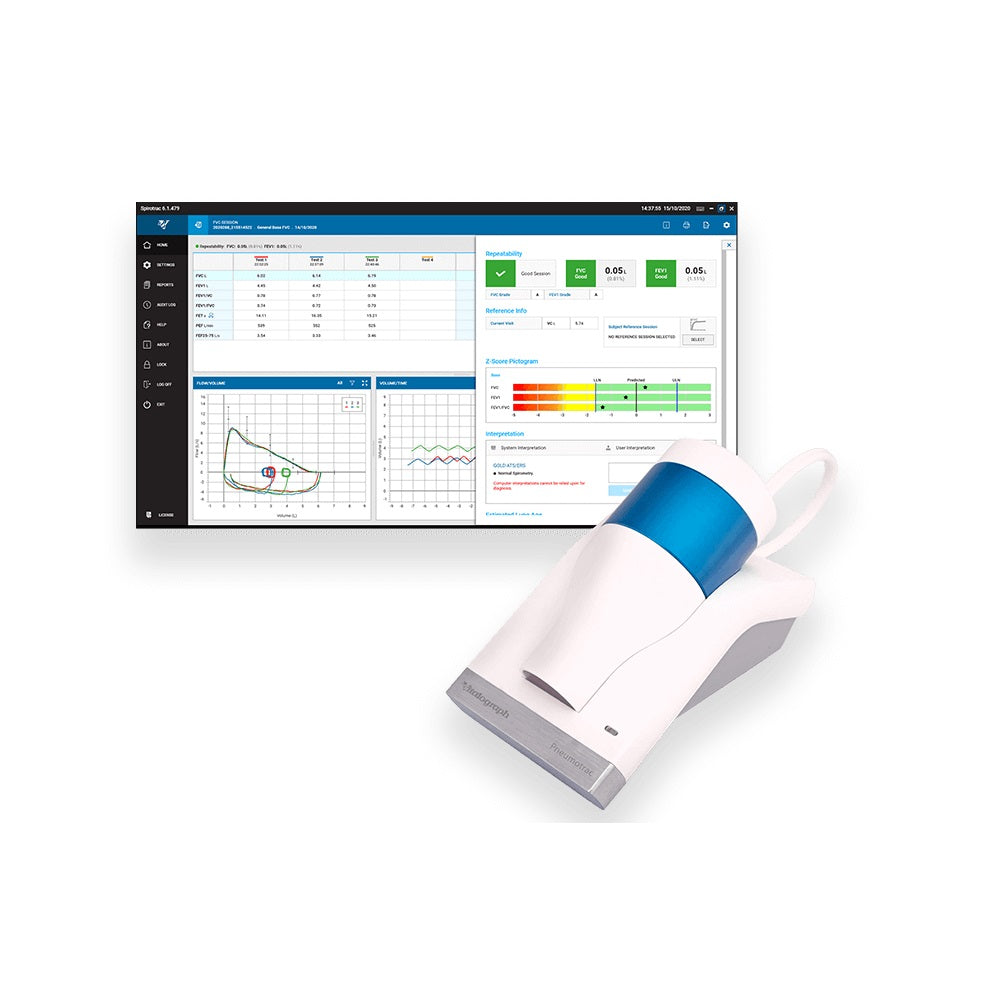

New Vitalograph Pneumotrac PC Spirometer with Spirotrac 6 Software

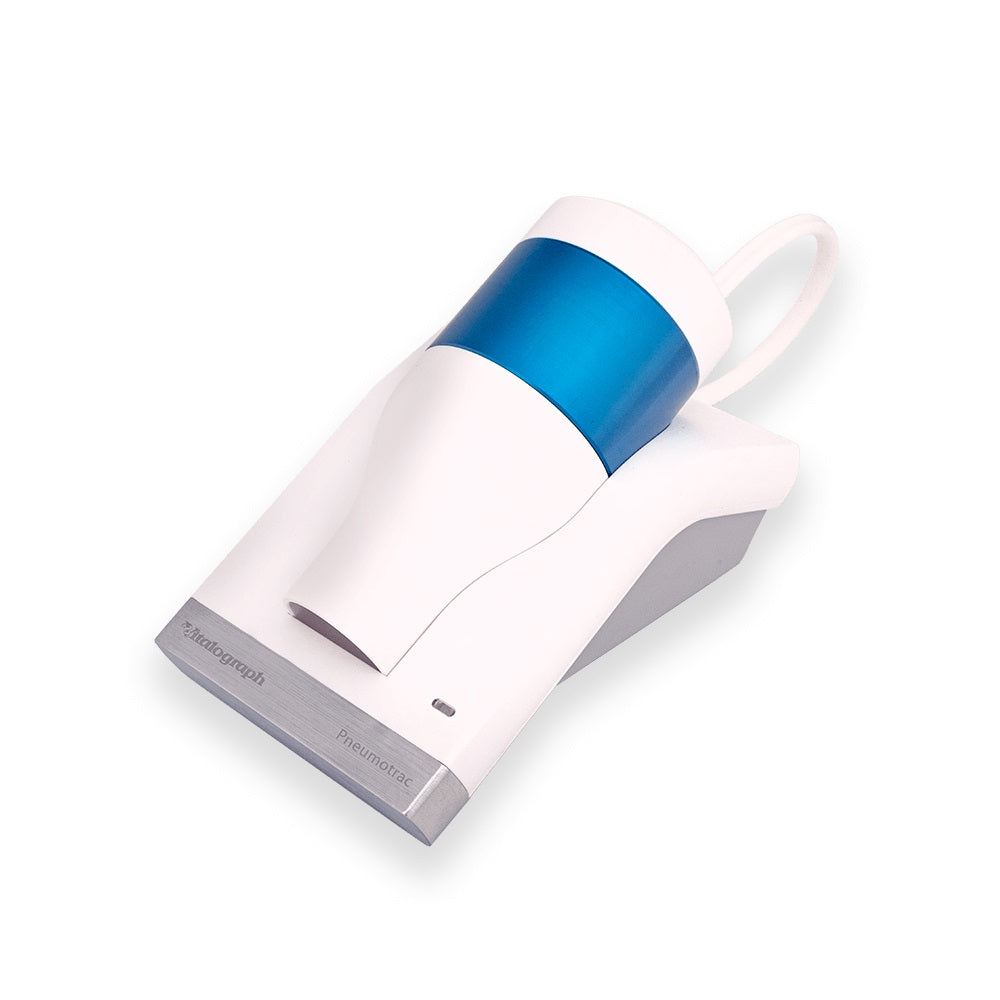

The next generation Vitalograph Pneumotrac Spirometer combined with our new and improved Spirotrac 6 software is a powerful and flexible respiratory diagnostic device. Improved sleek design with no moving parts for optimal robustness. The new Pneumotrac has a reduced desktop footprint allowing spirometry testing to take place wherever your PC, laptop or tablet can go.

Suitable for testing both adults and pediatrics due to the extremely reliable Fleisch flow technology which is accurate even at very low flow rates.

Vitalograph Spirotrac 6 Software is a powerful and flexible diagnostic workstation software, with the ability to integrate test results with electronic medical record (EMR) systems. Suitable for general healthcare and occupational health environments.

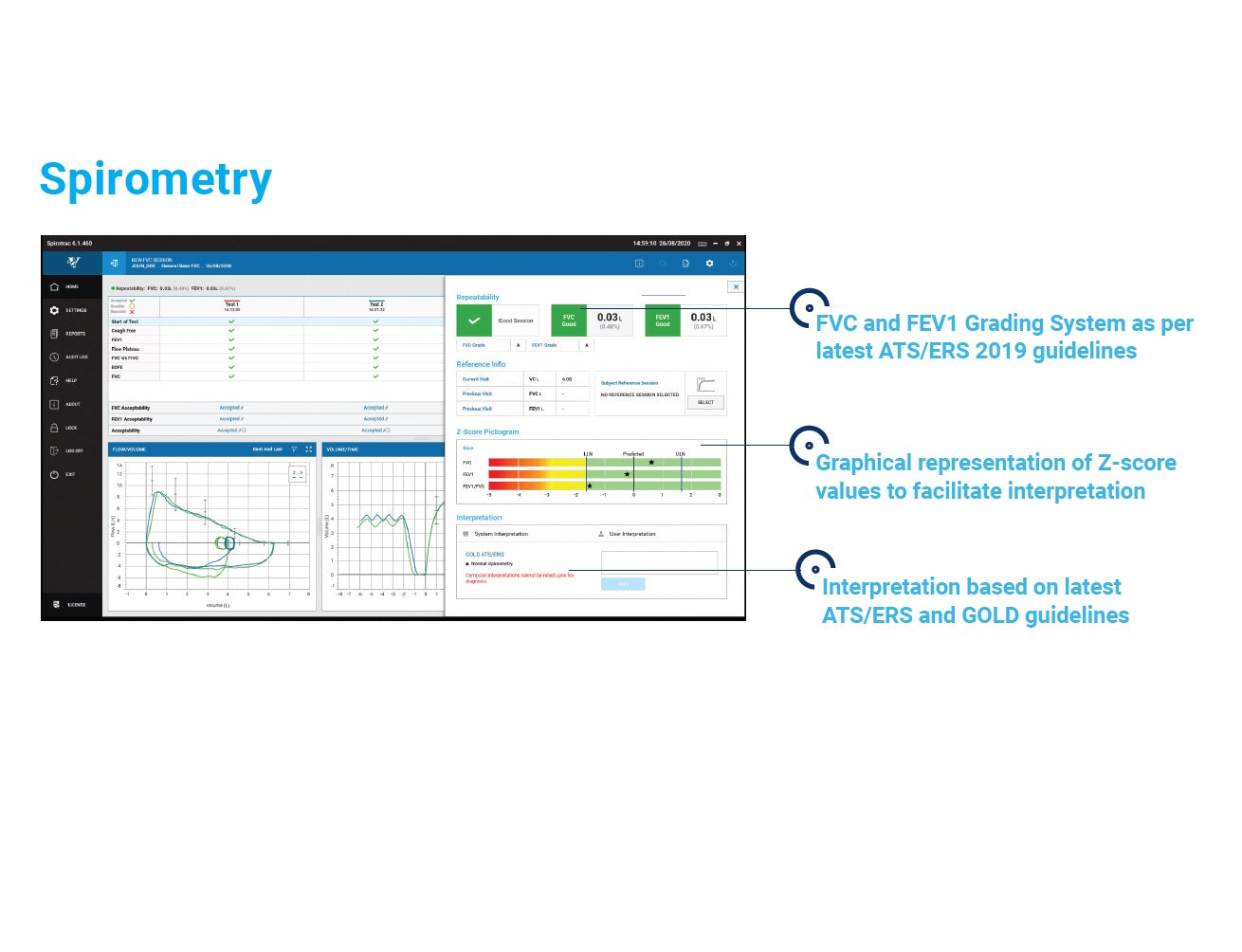

Featuring a new user interface design based on customer feedback, Spirotrac is now even more intuitive and easy-to-use. It allows you to consolidate both Spirometry and ECG through a single, flexible, and powerful application solution. Filing and storing results could not be simpler with fast connection to your EMR system.

Spirotrac 6 is compliant with the latest ATS/ERS 2019 guidelines and is compatible with the new range of Vitalograph products including the PC based Pneumotrac for spirometry, and the BT12 for 12 lead resting ECG.

Features & Benefits

• Meets 2019 ATS/ERS standardization of spirometry guidelines.
• Supports full feature spirometry testing and bronchodilator responsiveness testing with over 50 available parameters.
• Highly accurate, robust, and stable Fleisch flow measuring technology with no moving parts.
• Low running costs & environmentally friendly: no need for costly disposable sensors, turbines or flow tubes.
• Save time & money on cleaning using Vitalograph Bacterial Viral Filters (BVF™) with validated cross-contamination efficiency >99.999%, protecting the device, patient, and operator.
• Real-time curves and new incentive animations encourage optimal subject performance.

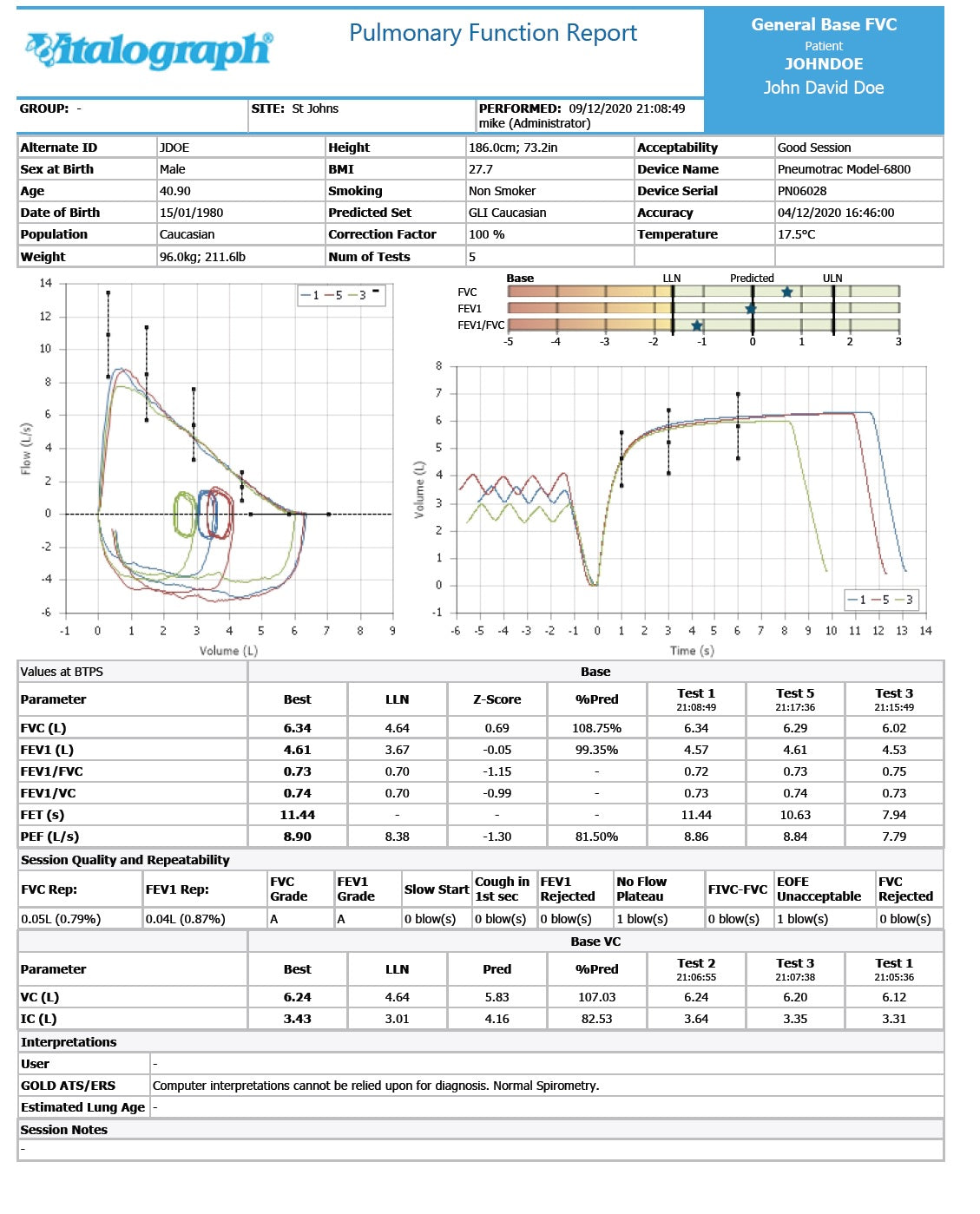

• Instant quality feedback using the latest test/session acceptability, usability and repeatability criteria.

• Automatic computer interpretation based on ATS/ERS & GOLD guidelines.
• Fast evaluation of results using latest GLI spirometry predicted equations with LLN, %Pred and Z-scores.
• Ensure best practice with quick and easy calibration verification routines as recommended by 2019 ATS/ERS spirometry guidelines.
•  Automatic BTPS correction with built-in temperature sensor for optimal accuracy.
• Share test data easily with compatible Electronic Medical Record systems.
• Free 5-Year warranty included with Pneumotrac product registration.

Technical Specifications:

•  Flow Detection Principal: Fleisch type pneumotachograph
• Volume Detection: Flow integration sampling @ 100Hz
• Volume Accuracy: Within ±2.5%
• Flow Measurement Range: Max. flow rate ±960 L/min (±16 L/s) Min. flow rate ±1.2 L/min (±0.02 L/s)
• PEF Accuracy: Within ±10%
• FVC Parameters: FVC, FEV1, FEV1/VC, FEV1/FVC, FET, PEF, FEF25-75, FEV6, FEV1/FEV6, FEV1 Ratio, PEF(L/s), PEF(L/min), FIVC, PIF(L/s), PIF(L/min), TV, IRV, ERV, IC, FEV3, FEV0.5, FEV0.75, FEV0.5/FVC, FEV0.75/FVC, FEV3/FVC, FEV6/FVC, FEF0.2-1.2, FEF25-75/FVC, FEF75-85, FIVC/FVC, FEF25, FEF50, FEF75, FIF25, FIF50, FIF75, FEV1/PEF, FIF50/FEF50, FIV1, FEV1/FIVC, FEV1/IVC, FIV1/FIVC, FIV1/FVC, FEF50/FIF50, MVVind, BEV/FVC, EOTV, FMFT, IVC, FEFmax, FEV1/HT2, RAWind, FEV3/VC, TLC, RV, FRC, BEV, TExt, TPef, tRISE, tHES, Lung Age.
• Back pressure: Less than 0.1kPa/L/second @ 14L/s
• Operating temperature: ISO26782 limits: 17–37ºC
• Design limits: 10–40ºC
• Performance standards: ATS/ERS 2019, ISO 23747:2015 & ISO 26782:2009
• QA/GMP standards: EN ISO 13485, FDA 21 CFR 820, JPAL, MDSAP
• Dimensions: 160mm (length) x95mm (width) x 115mm (height) Weight: 550g
• Power Supply: 5V DC via USB
