Description
Manual entry of subject data is optional as In2itive makes it possible to select all subject data from Spirotrac and download it automatically “saving time and eliminating data entry errors. Utilising Spirotrac V, predicted values are available through the integration of the clinical results” All Ages by Stanojevic.
Features:
- High-Resolution Touch Screen
- Over 50 Test Parameters
- VC, FVC, FEV1, FEV1 Ratio, PEF, FEF25-75% and more
- Capacity for 10,000 Subjects
- Single breath tests, flow/volume loops, multi-breath testing, tidal breathing and combined VC/FVC type test methods supported

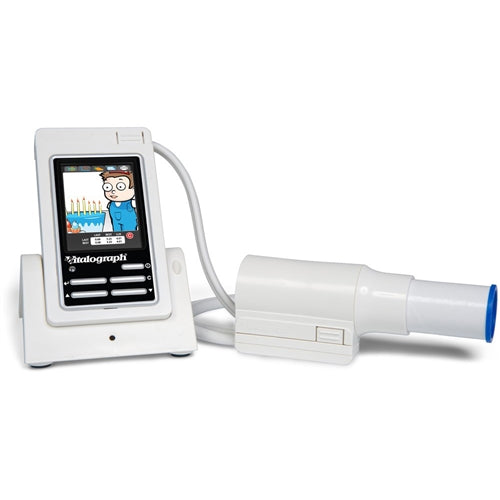

- Incentive Programs For Children & Adults
- PC Software For Reporting
- Cradle for battery charging & PC connectivity
- Assured hygiene with removable flow head
- Hours of battery life for off-site testing
- Carry Case, PC Software & 12 Months Warranty
Technical Specifications
Specifications:
- Subjects: Automatic population of the database from Spirotrac. Name, ID; Age, Height, Gender; Smoking status, Body Mass Index and more
- Environmental Data: Selectable: Temperature (built-in sensors), Barometric pressure, altitude, humidity
- Test types: Single breath tests, flow/volume loops, multi-breath testing, tidal breathing and combined VC/FVC type test methods supported
- Over 50 Selectable Parameters: VC; IVC; IC; VT (TV); TLC; RV; IRV; ERV; FRC; FVC; FIVC; FEV1; FEV3; FEV6; FVC; FEV1/VC; FEV1/FVC; FEV3/VC; FEV3/FVC; FEV1/FEV6; FEF75; FEF50; FEF25; FEF25-75; FEF25-75/FVC; FIV1; PIF, FIV1/ FIVC, FIF25, FIF50, FIF75, FEF50/FIF50, FET, MVVind, FEV1 Ratio; FEV0.5; PEF L/min; PEF L/s; FEF 0.2-1.2; FEF 75-85%; FEF25%; FEF50%; FEF75%; FMFT; FIF25%; FIF50%; FIF75%; PIF; FEV0.75; Lung Age. and more
- Predicted Values Selectable (depending on model): ERS/ECCS; NHANES, Polgar, Pereira, Berglund, Forsche, Gutierrez, Hedenstr_m, Taiwan; Knudson, Crapo; Hsu; KNLW; Viljanen; SEPAR; Gulsvik; SBPT; Tamura; Ip; Quanjer; Wang; Dockery and more.
- Flow Technology: Fleisch Pneumotachograph (No3 size)
- Resolution: 10 mL volume; 0.01 L/s flow
- Data Storage: Stores up to 10,000 subjects and hundreds of test sessions
- Accuracy when in Operating Range: Volumes: Better than ± 3% (Max 10L / Min 0L); Flows: Better than ± 10% (Max 16L/s / Min 0.02L/s); Linearity: ± 5% in range 0.1 L/s to 16 L/s
- PowerSAFE: Input 100 – 240V AC 50-60Hz, output 5V DC
- Battery Pack: Rechargeable Lithium Polymer 3.7v 2000mAH
- Connectivity: USB 2 •Max Test Duration: 20s FVC; 30s VC
- Performance Standards: ISO 26782:2009; ISO 23747:2007; ATS/ERS 2005
- Safety Standards: IEC 60601-1:2005
- Medical Safety Standard: Medical Devices Directive 2007/47/EC
- Designed & Manufactured Under: ISO 13485:2003, FDA 21CFR820, CMDR
Brochures/Manuals
Coming Soon
Warranty
