Description
Features:
- Electric operation by handset with integral function lockout
- Electrically operated backrest, height & knee break angle
- Backrest manual CPR release on both sides
- Tilt inclinometer
- Emergency stop button
- Removeable head & foot board
- Patient handset & nurse control panel
- Battery backup
- Four ABS safety side rails
- Four drainage bag holders on both sides
- Durable patient belts
- Heavy duty IV pole
- Auto contour simultaneous adjustment of backrest & knee break
- 125mm heavy duty central locking castors
Technical Specifications
Specification:
- Overall length: 215cm
- Overall width: 110cm
- Height range: 52-76cm
- Hoist clearance: 14cm
- Mattress platform length: 195cm
- Mattress platform width: 90cm
- Backrest angle: 0-75 degrees
- Knee break angle: 0-35 degrees
- Leg angle: 0-20 degrees

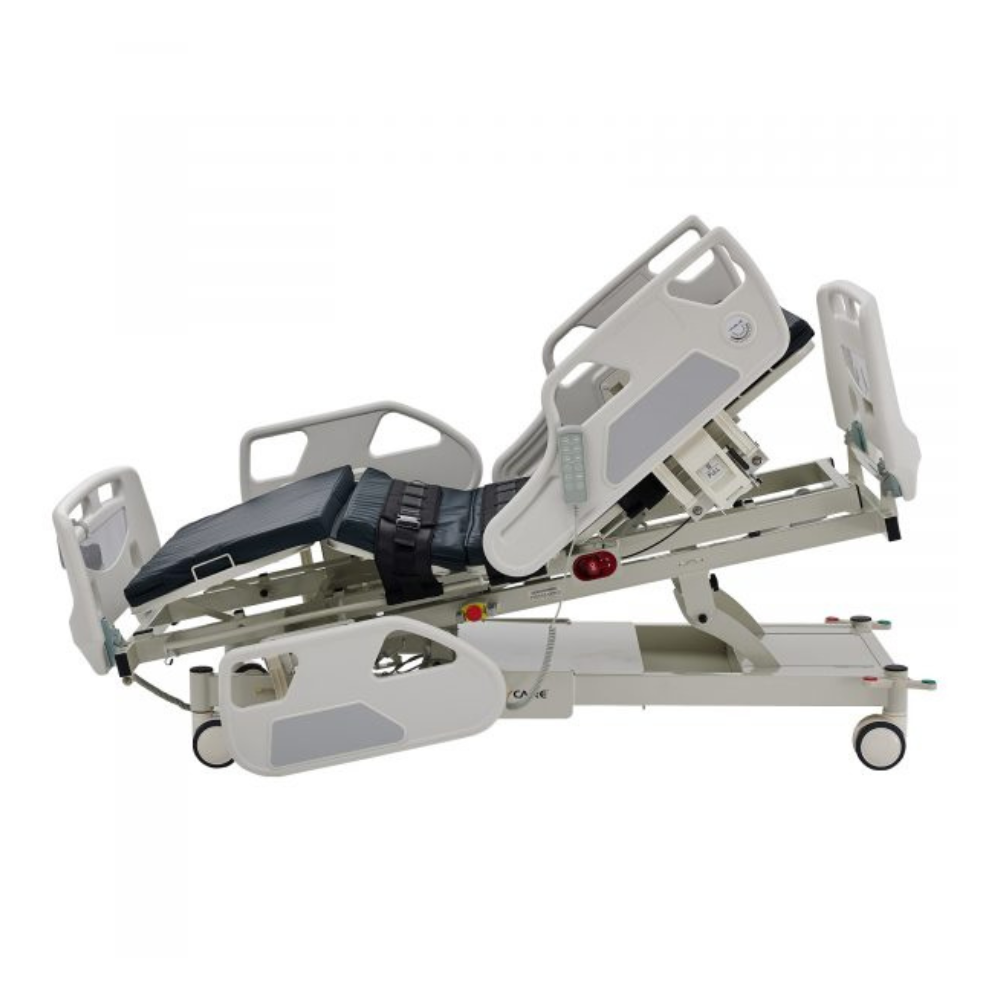

- Trendelenburg & reverse trendelenburg: 0-16 degrees & 0-13 degrees

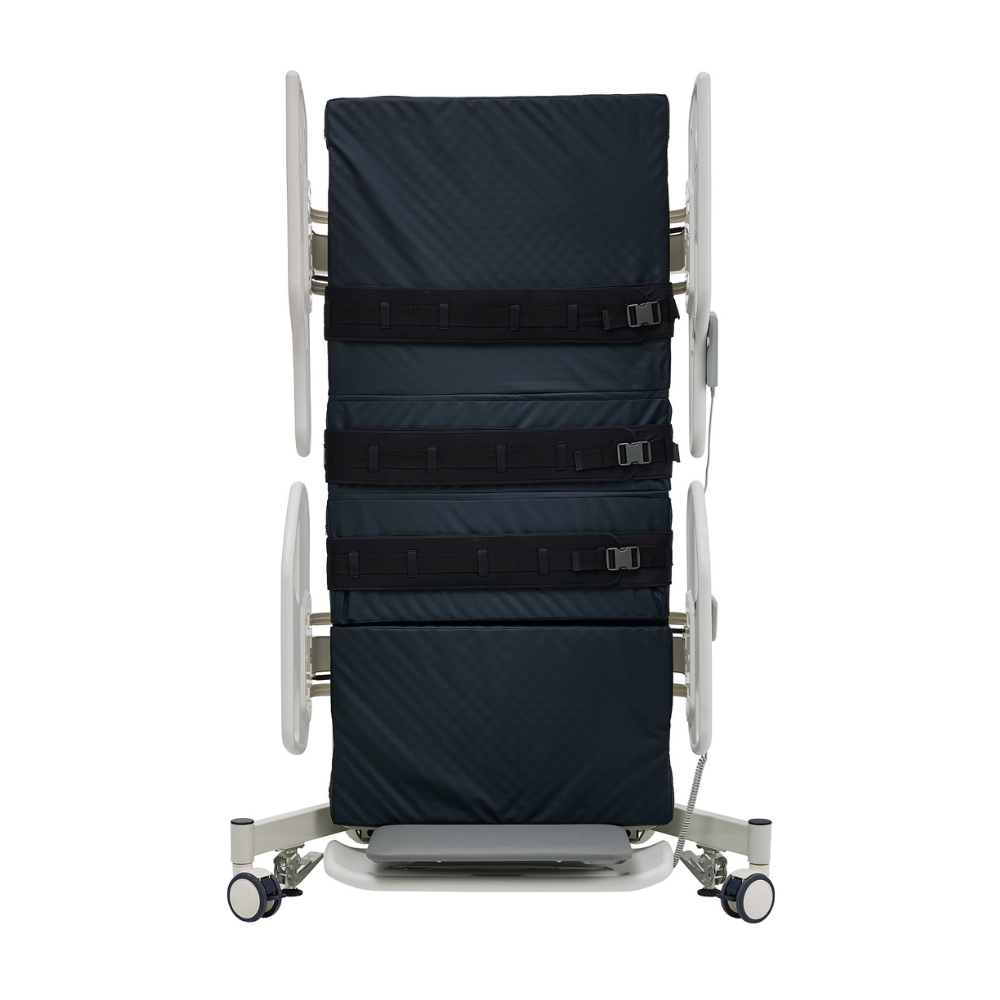

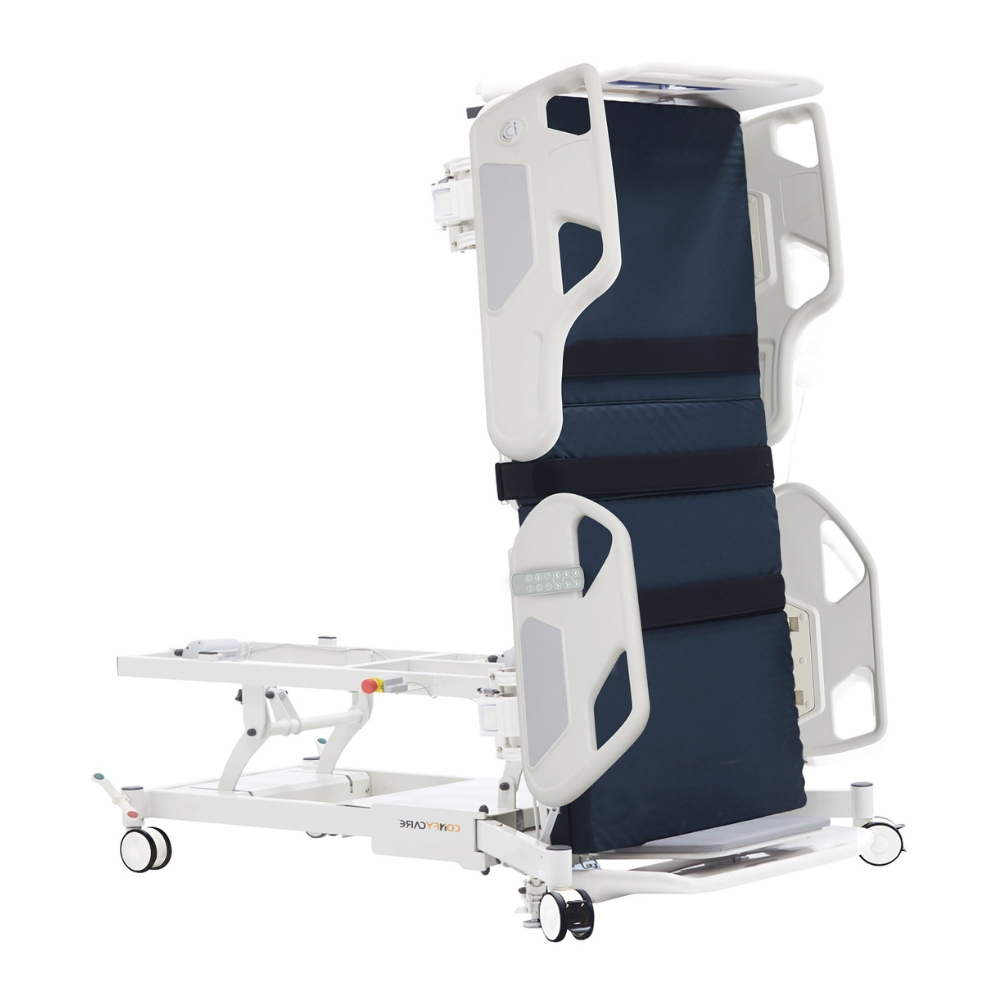

- Tilting angle: 0-85 degrees
- SWL: 225KG
- Warranty: 3 Years
- Certification: CE, FDA, ISO13485-2016
