JTECH Commander Echo Static Force Gauge With Console

The JTECH Commander Echo Static Force Gauge is designed to measure push and pull forces. The versatile Echo Wireless Static Force Gauge is the ultimate tool to use when performing Job Analyses, Functional Capacity Evaluations (FCEs), Ergonomic Studies, National Institute for Occupational Safety and Health (NIOSH) Lift Tests and much more

JTECH Commander Echo Static Force Gauge Key Features:

  • Measures Push & Pull Forces
  • Used for ergonomics, engineers and occupational health & safety
  • 500lb Testing Capacity (226kg)
  • Stores 20 tests with 8 reps each
  • Auto Direction (push or pull) selection after first rep
  • Determine weight or mass of objects
  • Calculates (CV) for multiple repetitions
  • Displays maximum force or maximum and average force for each repetition
  • Time tests from 1-5 seconds, or "untimed" for longer duration
  • Six (6) different accessories to create the tests you want
  • Axis Compensation smart load cell technology. Maintains accuracy even when force is applied off-center.


SKU: JTECHSTATIC

Shipping calculated at checkout.

Request Quote

Similar Items

Sit and Reach Box
Activforce 2 Digital Muscle Tester Dynamometer & Inclinometer
Hand Grip Dynamometer
Description
Technical Specifications
Videos
Warranty
Description

JTECH Commander Echo Static Force Gauge Includes:

  • JTECH Static Force Gauge
  • JTECH Echo LCD Display Console
  • T Bar
  • D Handle
  • Hook with Stud
  • Threaded Pad Adapter
  • Flat Pad
  • Curved Pad
  • Carry Case

The JTECH Console has a large easy to read LCD window. It connects to the JTECH Commander Devices through blue tooth and is physically independent of the testing device allowing the practitioner to review the data during active testing. Stores 20 test with 8 reps per side, and automatically calculates appropriate statistics. Measure in pounds, kilograms and degrees.

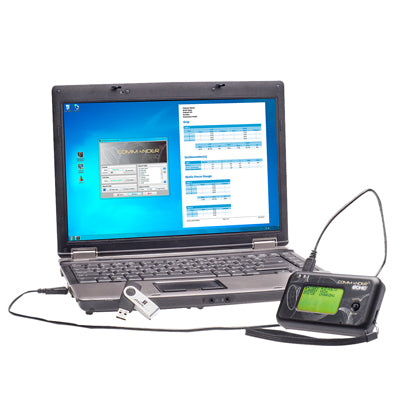

*JTECH Software Sold Separately - Commander Echo Downloader enables you to create quick but meaningful reports from the data you collected on your Commander Echo Console with the click of a button. The easy-to-use Commander Echo Downloader software interfaces directly with your Commander Echo Console eliminating dictation and transcription errors. Ability to print a number of different reports.

Technical Specifications

JTECH Echo Static Force Gauge Specifications:

  • Repetitions per Test: 1-8
  • Maximum Force Input: 500 lbf (226 kg , 2224 N)
  • Units of Measure: lb, kg, N
  • Weight: 0.39 lb (0.18 kg)
  • Length: 2.79 in (7.1 cm)
  • Width: 1.81 in (4.6 cm)
  • Height: 1.96 in (5 cm)
  • Battery Type: Rechargeable Lithium Polymer
  • Battery Life: Approx. 10-14 hours of continual use

    Videos
    Warranty

    12 Months Warranty
