Functionality & Components
Gyko makes it possible to objectively evaluate and monitor joint functionality and muscle strength during rehabilitation phases and for training a certain area of the musculoskeletal system. It is used to quickly identify any posture deficiencies, problems, or asymmetries and, thanks to the immediate delivery of the numerical values, it helps prevent relapses, complications, and regressions of the disease or post-accident condition by periodically checking the results obtained and the effectiveness of the treatments. It makes it possible to perform motor movements that are more or less complex without limiting or influencing the subject, also due to the fact that it can be used outdoors and on any surface (grass, sand, unstable platforms, etc.). It motivates the subject to constantly improve his conditions.

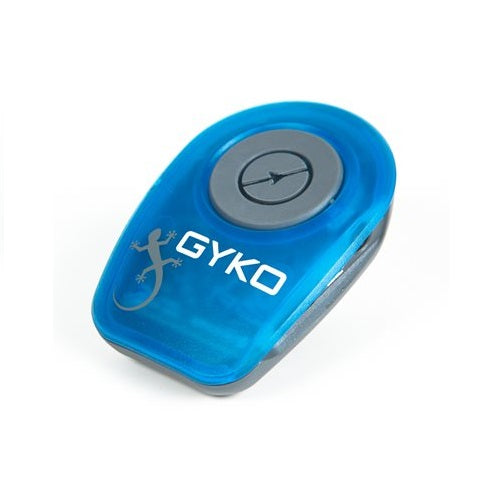

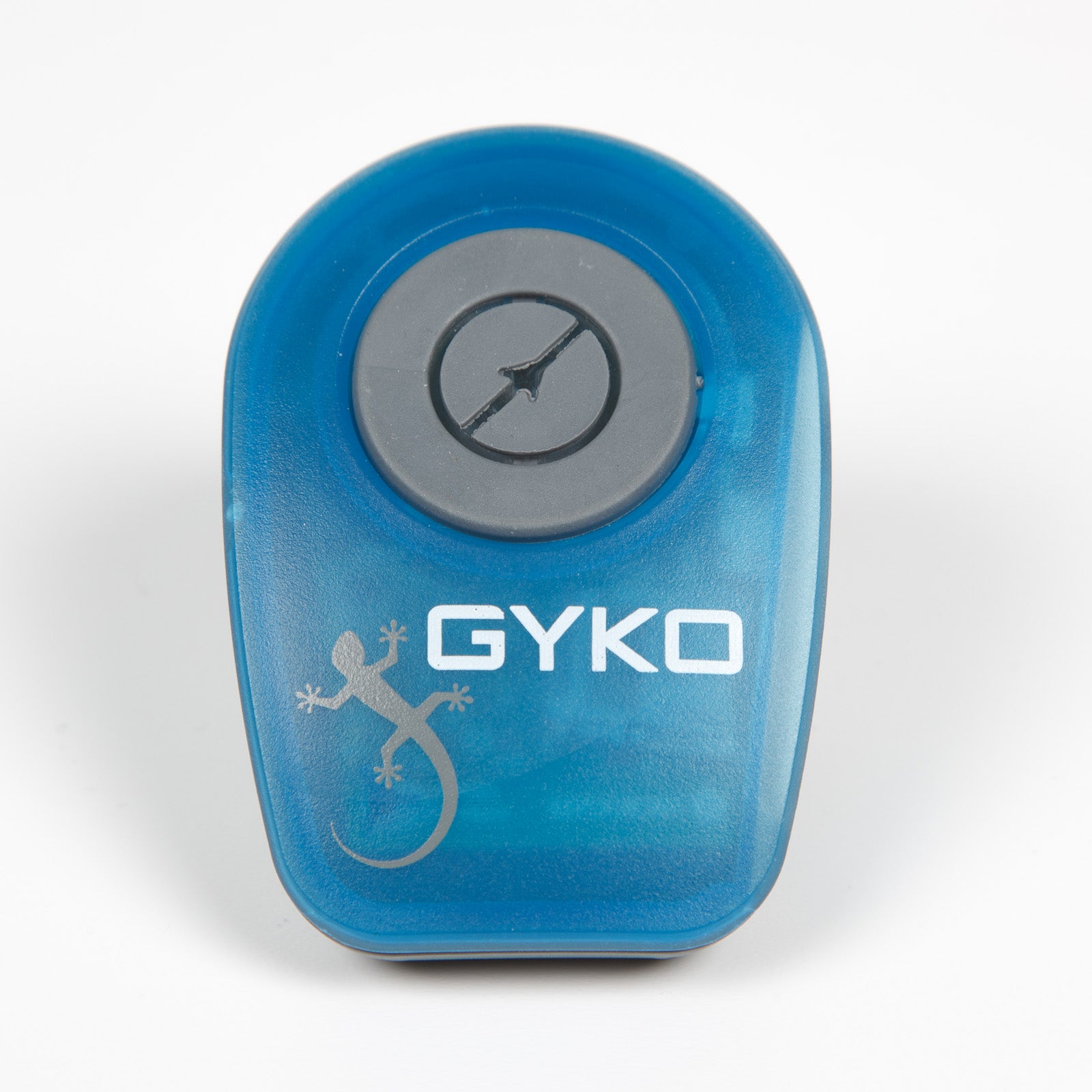

Gyko contains the latest generation components that are used for carrying out accurate and repeatable measurements of acceleration, angular velocity, and magnetic field in three dimensions.

Quality & Operation
Gyko is the ideal tool for those who want to receive an objective evaluation of the human movement analysis in a quick and intuitive manner without any reduction in the precision of the data measured. Thanks to the research carried out for creating and processing the software dedicated to it and its latest-generation technical features, GyKo offers services that can be compared to the industry gold standards, but its ease of use and data display make it a much more practical tool.

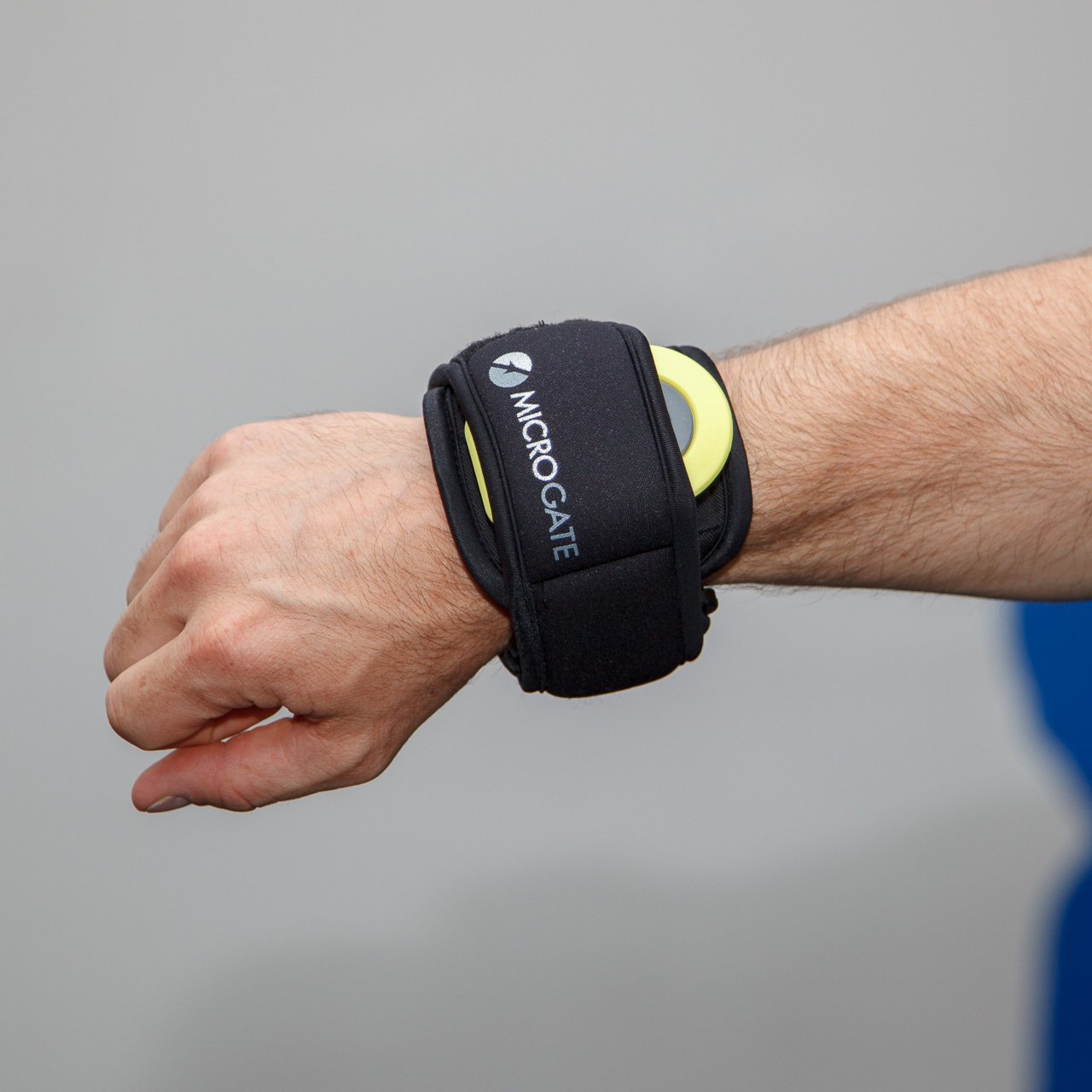

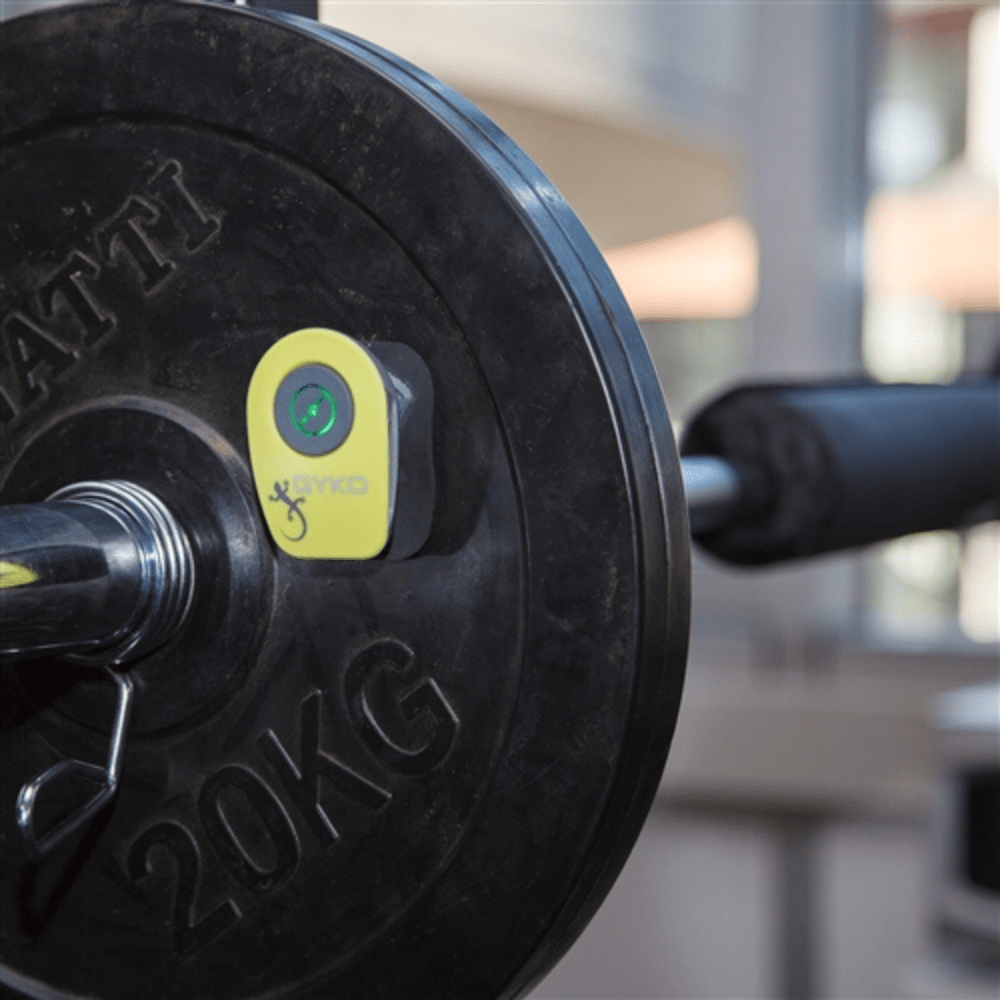

Its application on various body segments is made easier by the use of various accessories, such as the pelvic belt, the vest, two belts of different sizes for upper and lower limbs, and magnetic support that can be fastened on weights or a barbell. It is all easy to carry with you thanks to its small, compact case.

Gyko In Combination With....
OptoJump Next and OptoGait represent today the most advanced system for obtaining information about the lower part of the body. It is in fact possible to quickly and accurately obtain the measurement of the space-time parameters of the gait, when walking or running, or the flight and contact time of a jump.

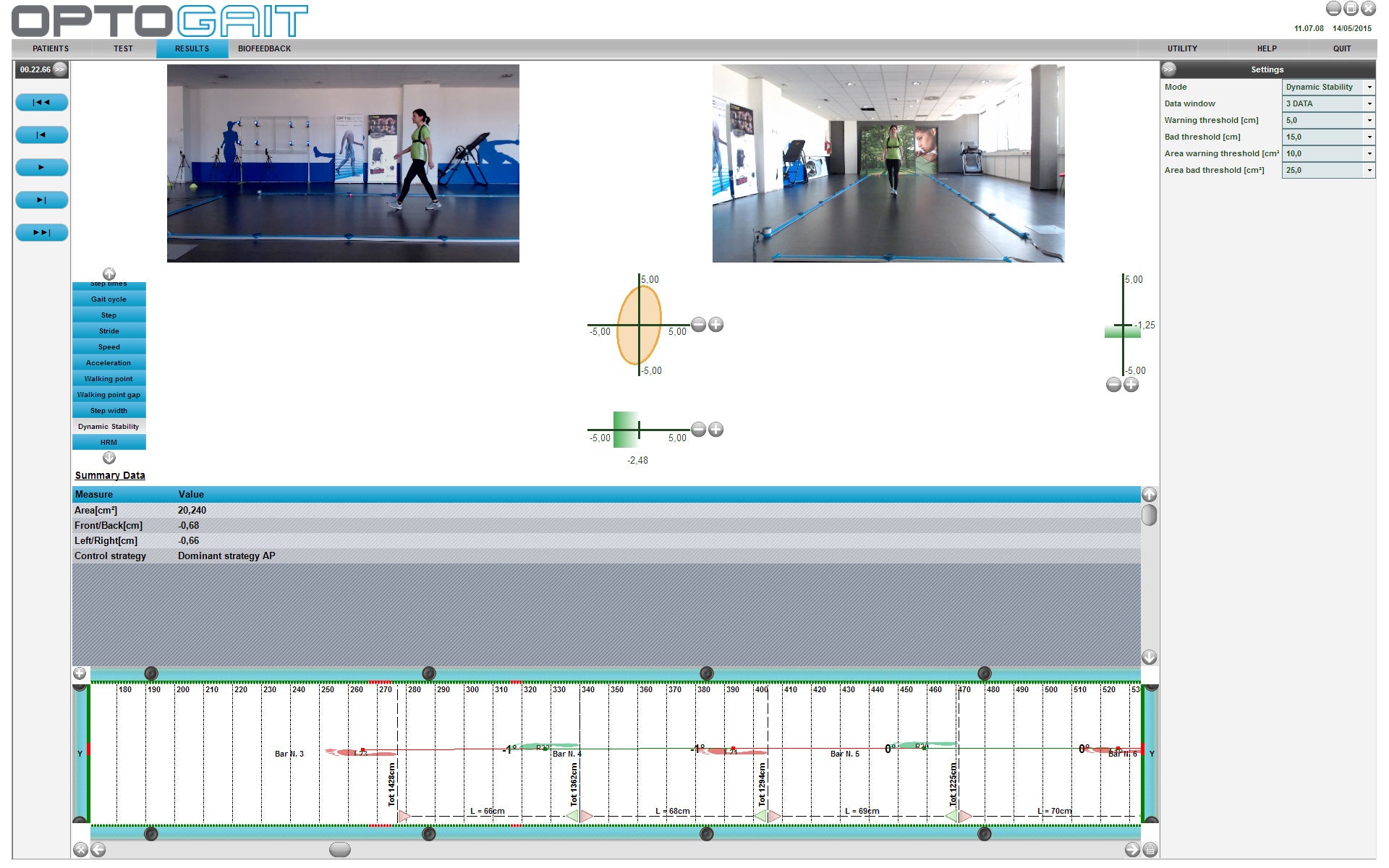

Gait Analysis - Walking & Running Analysis

The gait analysis is one of the most widely used methods to determine any disorders of the nervous and/or musculoskeletal system. With Optojump Next and OptoGait you can estimate the space-time parameters of the gait and isolate individual phases of the step, then accurately describe the behavior of the lower body.

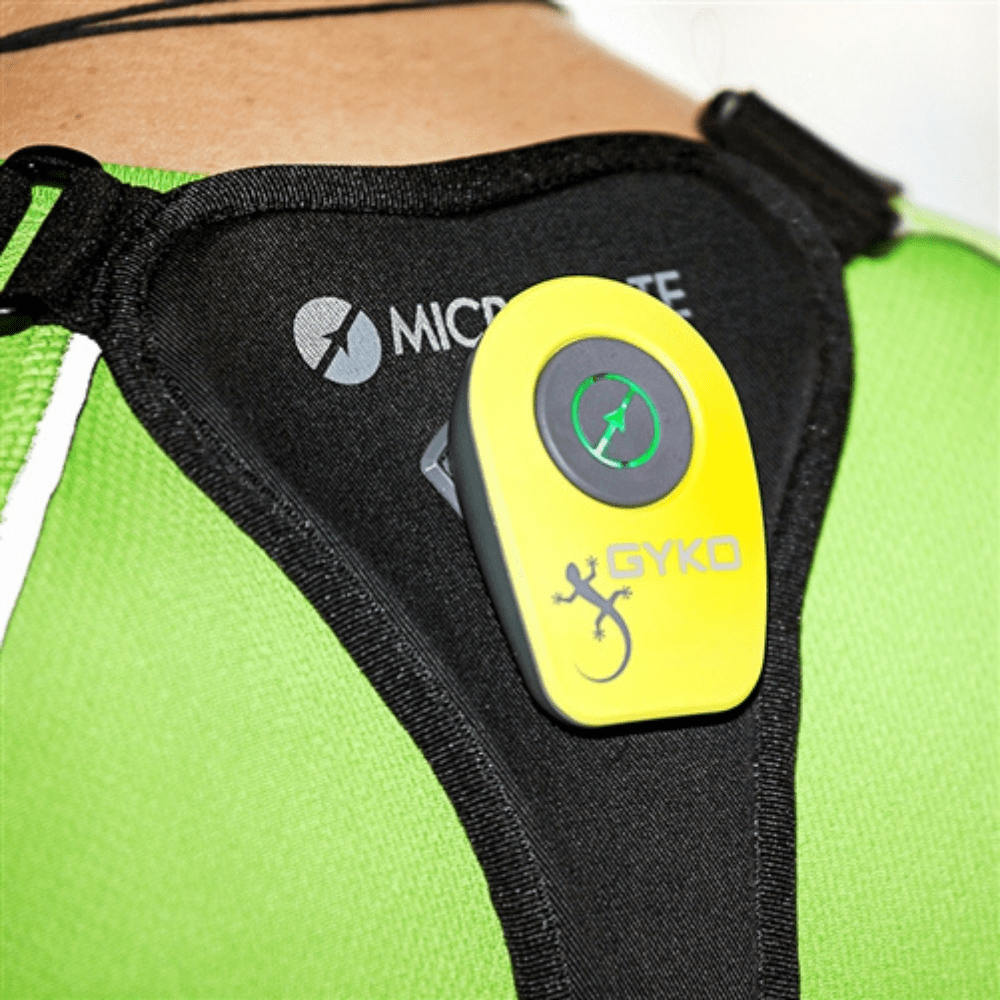

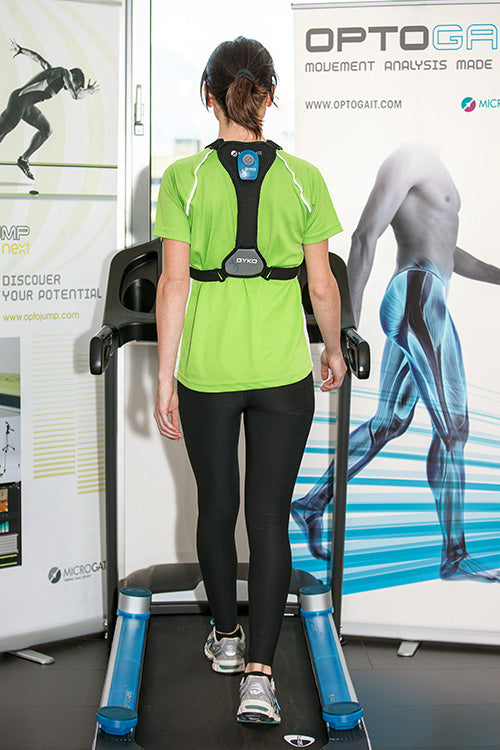

Gyko, placed in the area beneath the shoulder blade by using a special bib with a comfortable 3-button fastening, enables naturally integrating the information measured on the ground with the kinematics of the trunk in order to provide accurate information on the stability and coordination of the upper body.

The movement of the trunk is analyzed in each phase of the step and, through advanced algorithms, specific parameters of the analyzed test are estimated such as:

• Antero-posterior and medio-lateral imbalance
• Main directions and breadth of the movement of the trunk
• Upper Phase Coordination Index (UPCI) that describes coordination in the rotation of the trunk
• The phase difference between the lower body and the upper body
• RMS, Harmonic Ratio and Harmonicity index describing gait stability

Jump Analysis

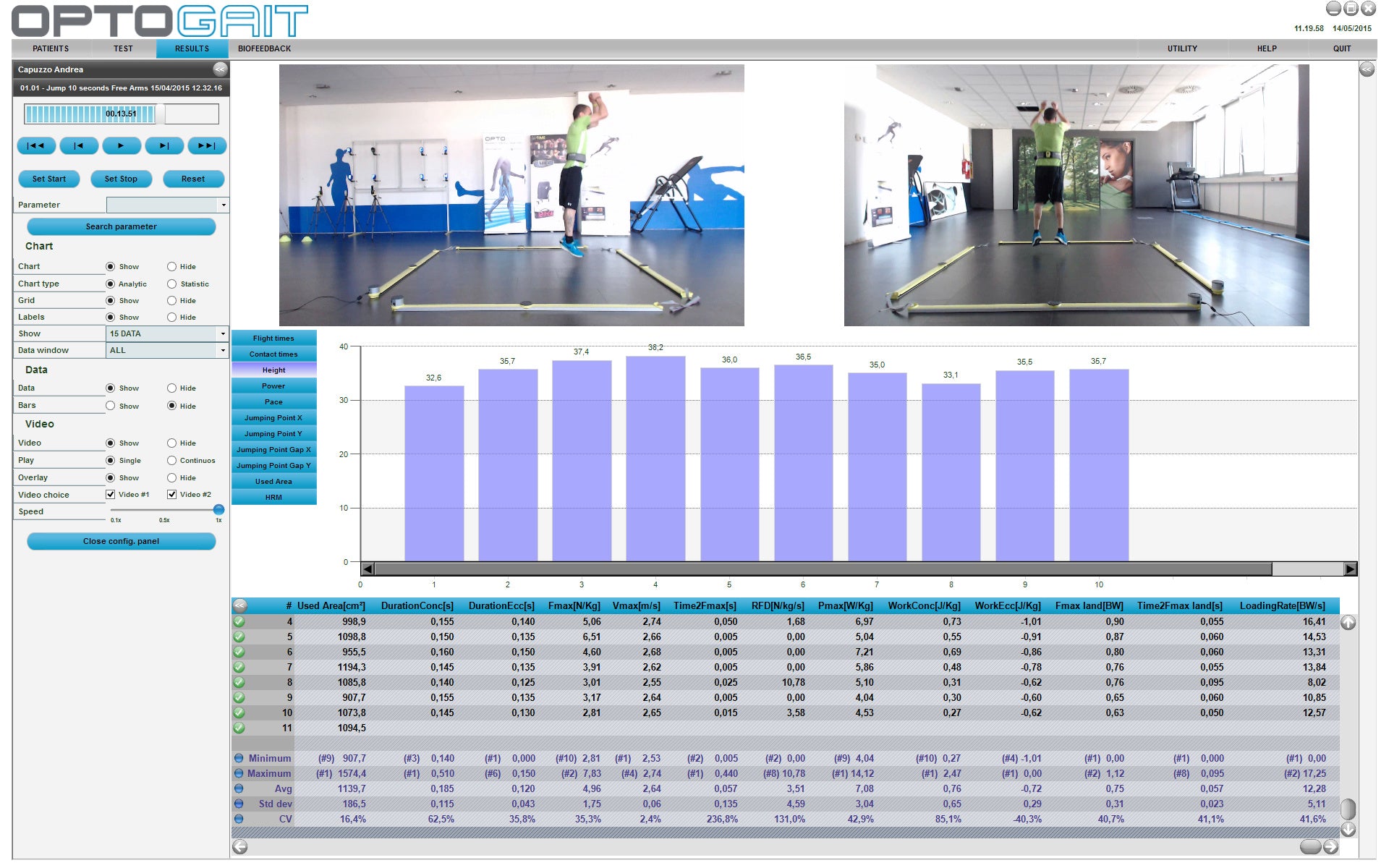

Using field tests and in the particular vertical jump, analysis has always been a widely used method for evaluating lower limb muscle strength. OptoJump Next is the instrument used to measure and objectify the main features of a jump such as flight and contact time.

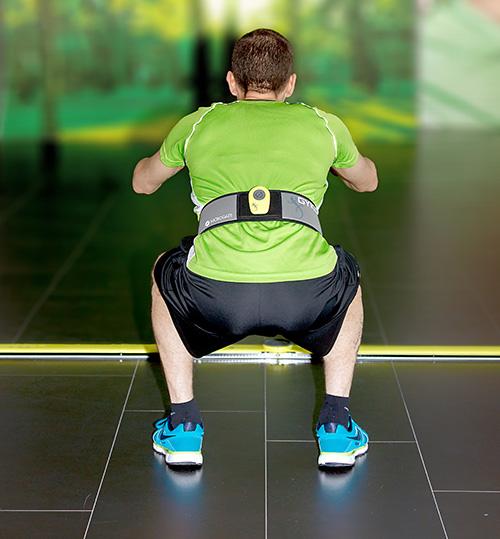

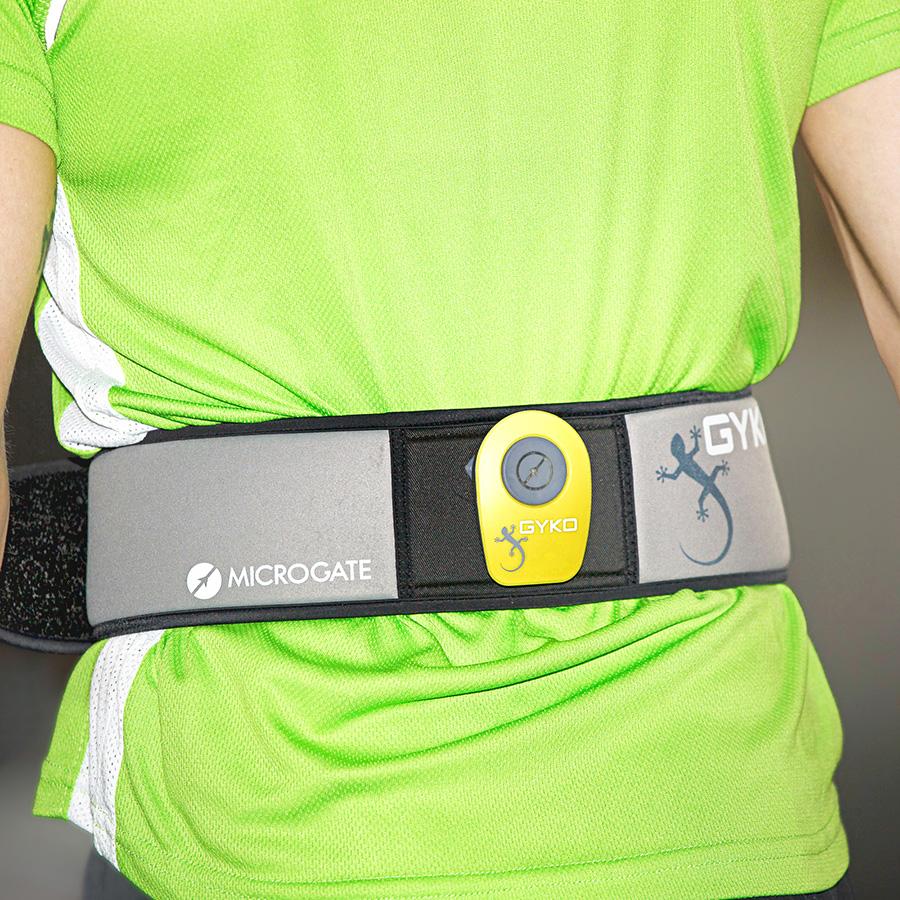

Gyko placed near the center of mass with a special belt enables enriching the temporal data with a variety of information regarding the dynamics of the jump. It is then possible to measure lower limb strength directly and, using appropriate algorithms, accurately and repeatably provide data relating both to the eccentric loading phase and to the concentric thrust phase.

The movement of the trunk during the flight and contact phase is analyzed and provides, among other things, the following additional parameters:

• Eccentric and concentric work and duration
• Force, Velocity, and Maximum Power
• Rate of Force Development and Landing Rate

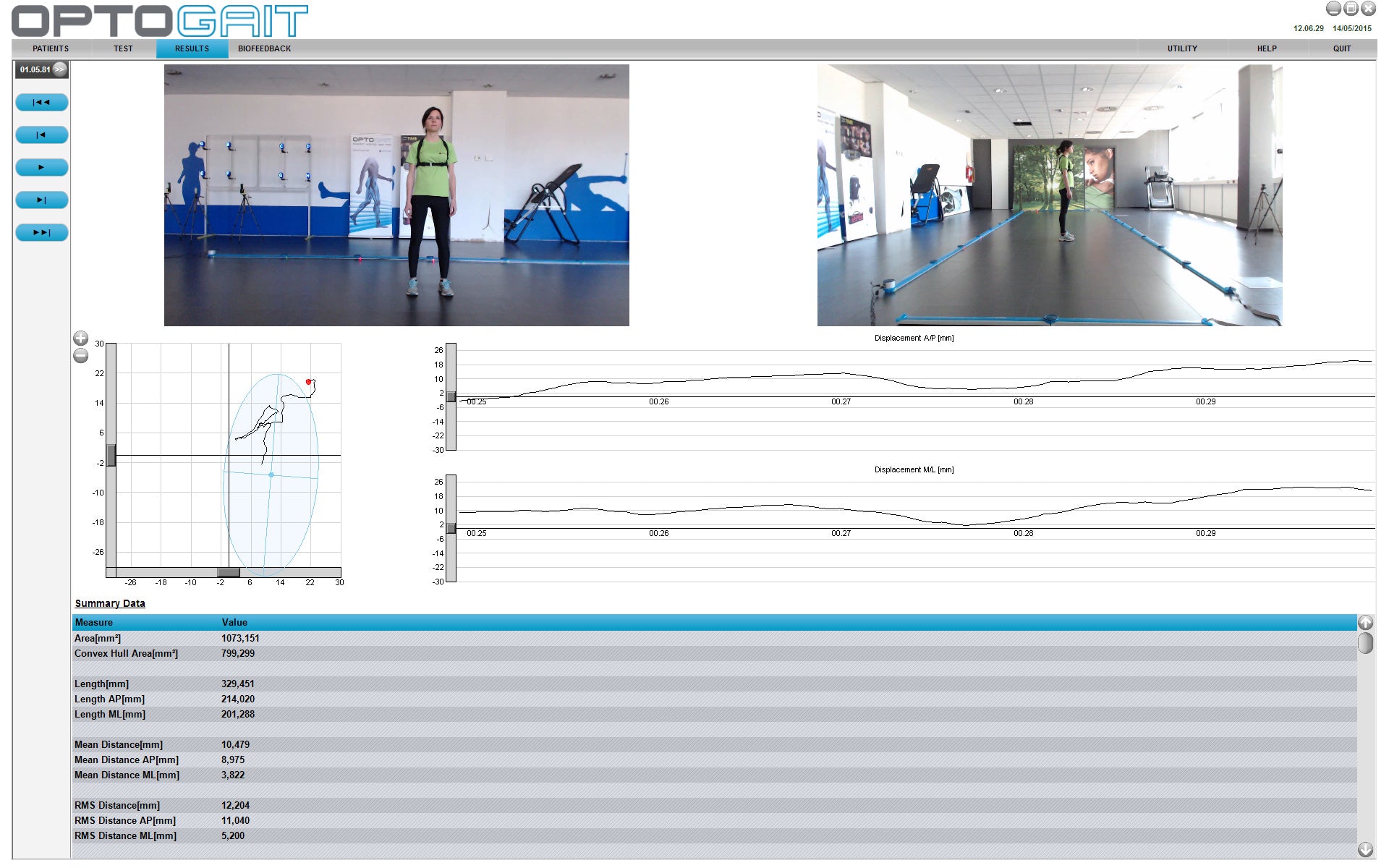

Posture Analysis

Postural analysis is frequently used to evaluate the stability and balance of a quiet standing subject.

Gyko, placed on the trunk or at the level of the centre of mass, provides important information about the body sway of the subject and through appropriate protocols it enables evaluating the relative contribution made by the various components of the postural system (visual, proprioceptive of different origin, labyrinthine, etc.).

Gyko lets you simply and quickly obtain the best known indexes concerning the projection of the body's centre of gravity on the ground.

The main indexes returned are:

• Projection length and area
• Projection travel speed
• Sway frequency

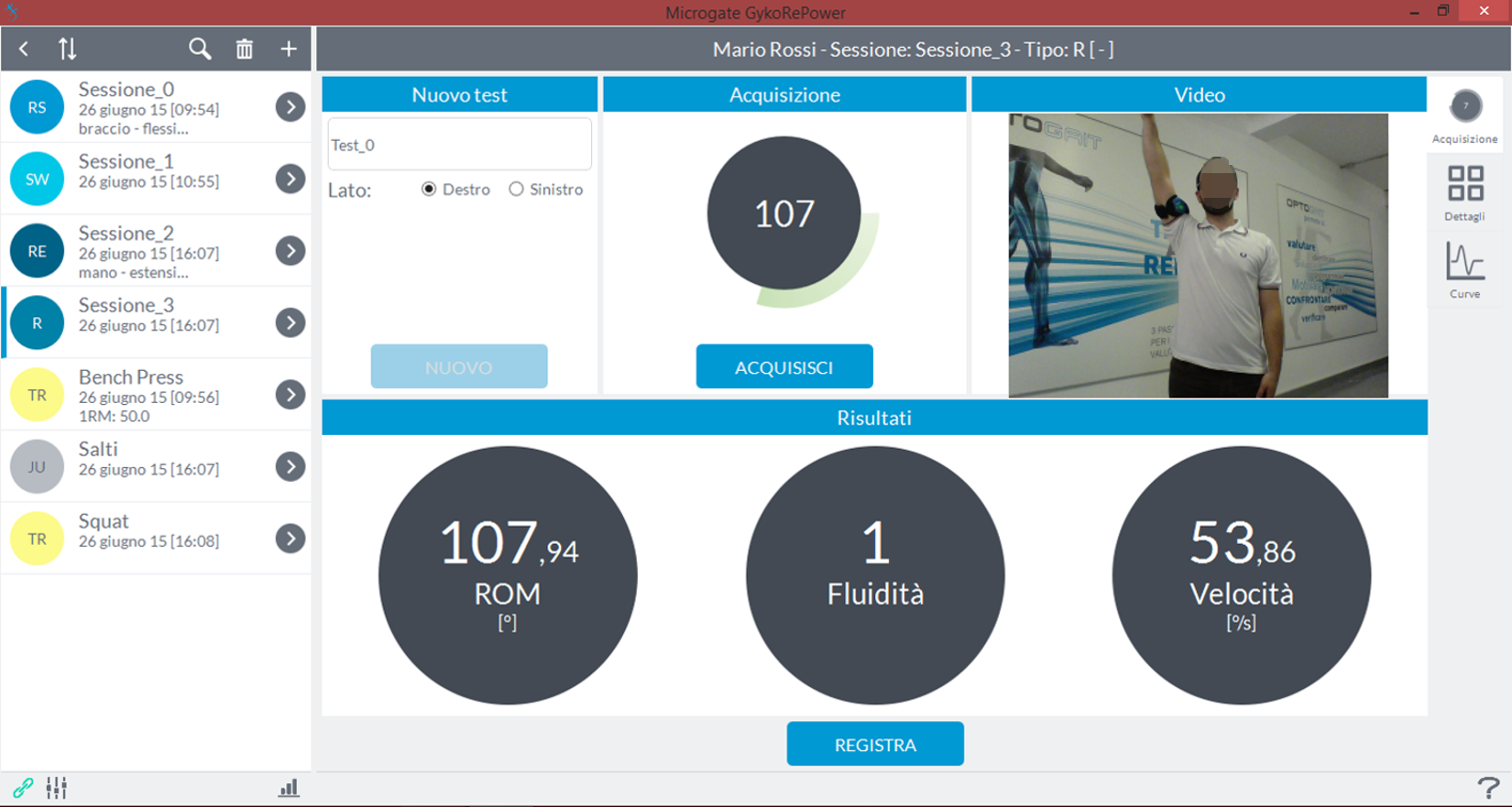

The Gyko RePower Software
Gyko can also be used in a stand-alone version, that is without needing to be associated with Optogait or Optojump Next, using the Gyko RePower software

The Gyko software has a state-of-the-art interface that is fully dedicated to it, and the constant research and development of the algorithms used to supply the data make it possible to perform a quick and accurate analysis in situations such as after an accident, during a recovery phase or if the subject wants to improve and monitor the progress of his performance during a training phase. In the registry area, it is possible to enter the fundamental data of the various subjects as well as add tabs or photos for a faster search. The central part of the software is divided into two sections, Rehab and Power.

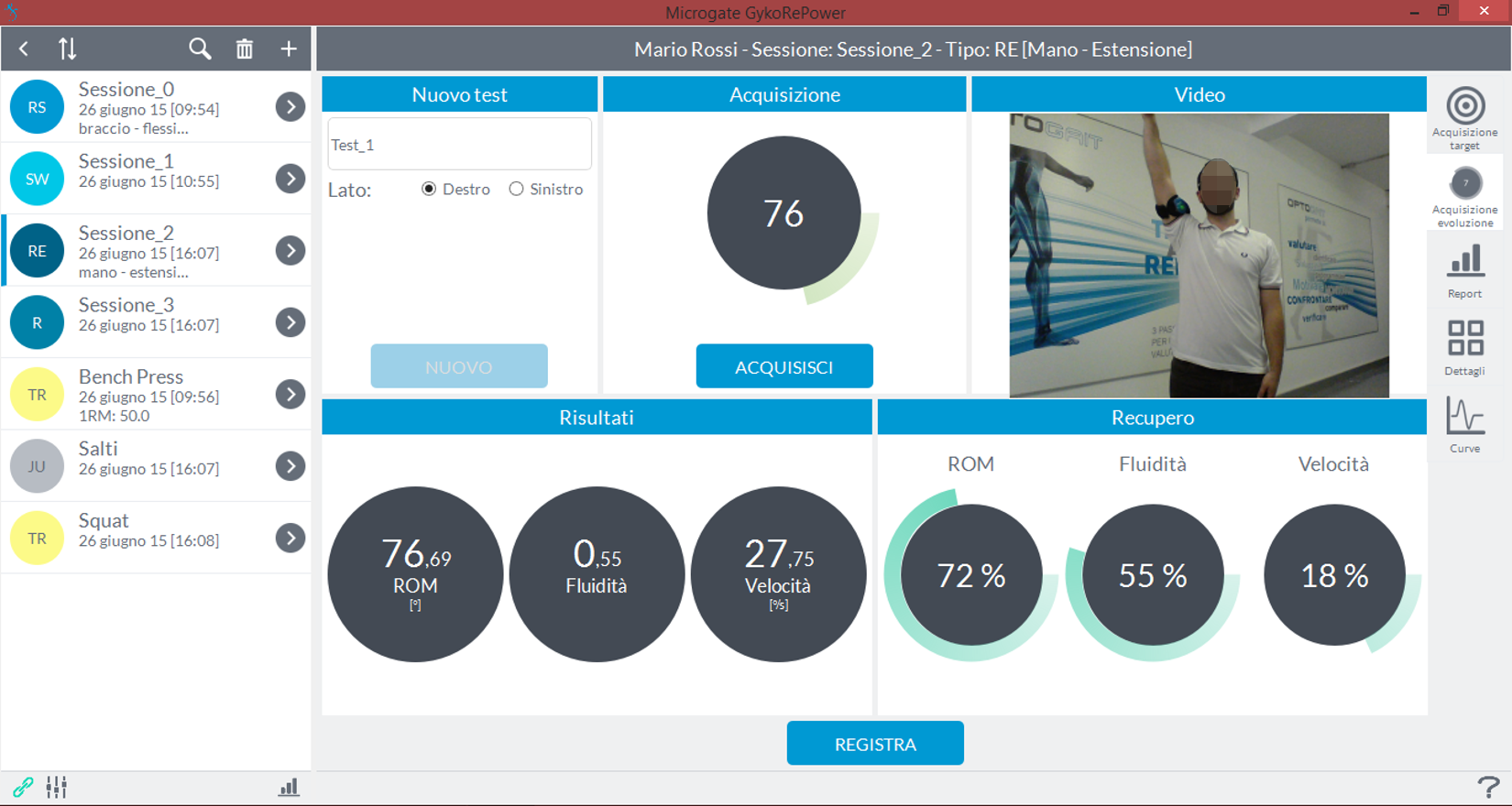

The Rehab section implements protocols for the evaluation and monitoring of joint functionality and muscle strength when rehabilitating a certain section of the musculoskeletal system and also makes it possible to perform a stabilometric analysis of the center of mass.

A traumatic event involving the musculoskeletal system forces the individual to a period of immobilization. During the rehabilitation process, the task of the therapist is to guarantee a return to levels of muscle strength that are able to guarantee that an athlete or a senior citizen can return to normal daily activities (running, going upstairs, etc.). From this point of view, it becomes very important to be able to evaluate, using an objective and non-subjective method, the muscular abilities of the subject in order to create an individual training program whose effectiveness can be monitored.

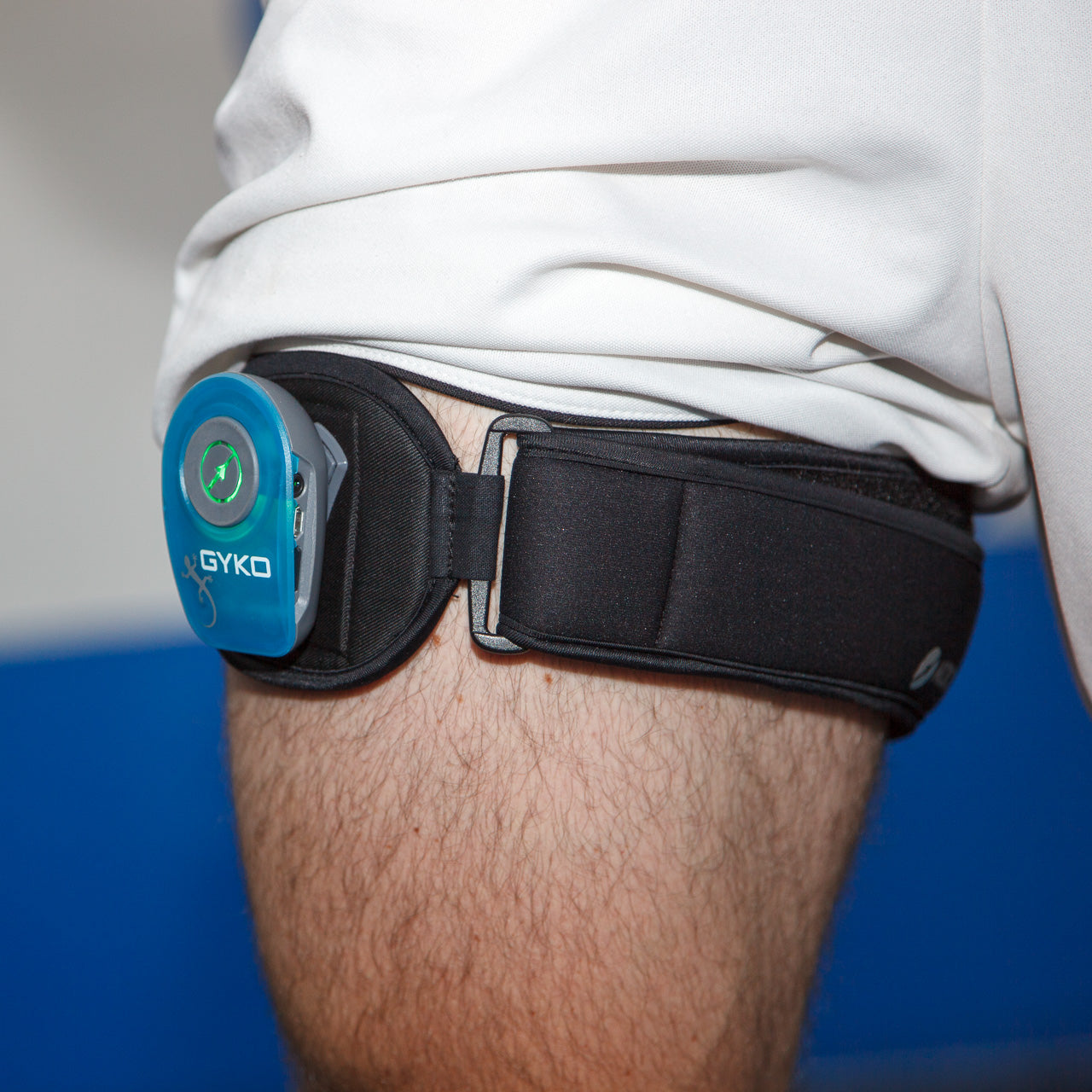

GykoRePower accompanies the subject during the entire rehabilitation process, with a 360-degree analysis of his physical condition: evaluation of the joint function and muscle strength in the body areas involved with the accident and/or orthopedic surgery, using the elastic belts on the limbs; evaluation of the condition of balance in different situations and/or on different surfaces with the help of the pelvic belt or by positioning Gyko between the two shoulder blades. GykoRePower is a tool able to evaluate and report each evolutionary phase in the recovery of joint function and muscle strength.

The Rehab section of GykoRePower makes it possible to:

• Quantify the deficit in terms of joint function or muscle strength between a limb and the contralateral or between the injured limb and the same limb prior to the accident
• evaluate and measure the subject's balance in different situations and/or on different surfaces
• monitor the exercise intensity with real-time visual bio-feedback via a work threshold that can be selected by the user
• trace and report the subject's recovery during the entire rehabilitation process by means of the reporting functionality

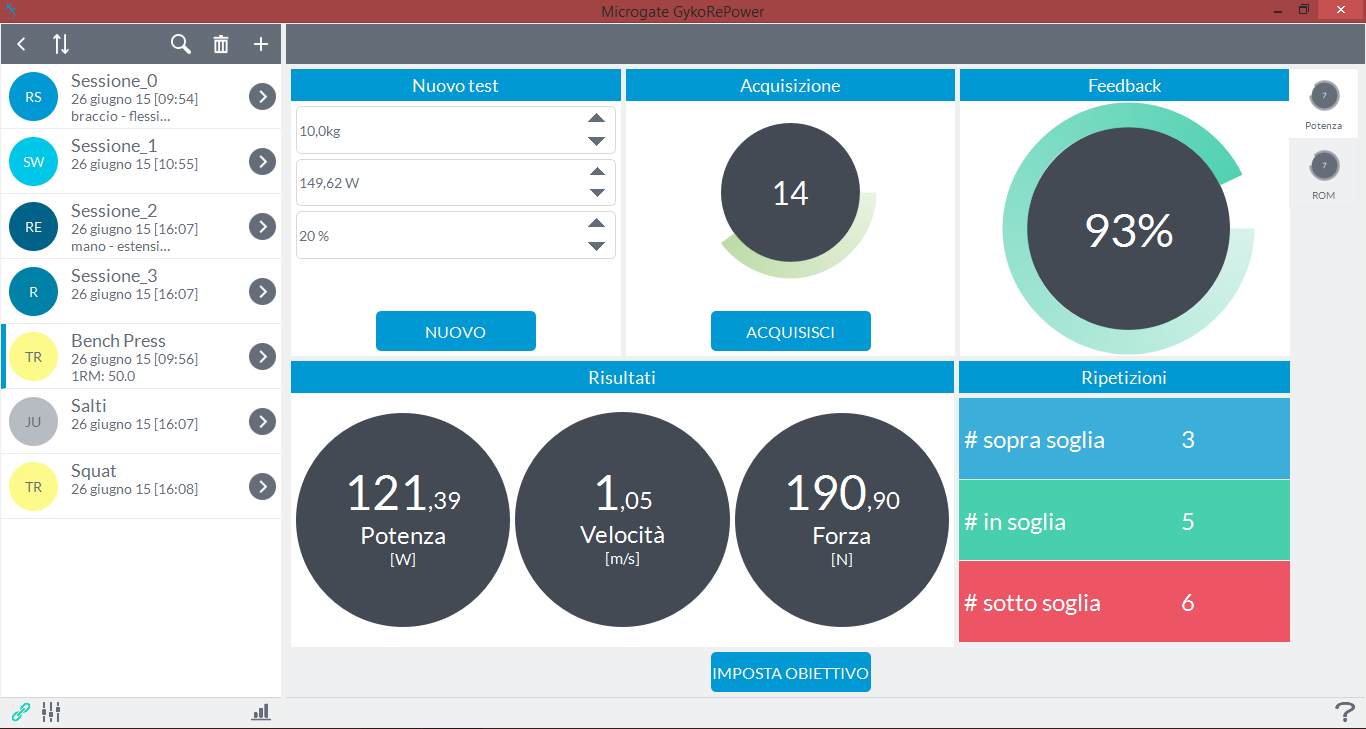

The Power section is used to evaluate and monitor muscle strength.
When the target of the training is to optimise performance, it becomes very important for athletes to measure and analyse the improvement of their results in an objective and accurate manner.


GykoRePower is a product that is specifically designed to evaluate and monitor athletic performance directly in the field. The performance of the most typical tests adopted by technicians and widely accepted by the scientific community form the basis of the evaluation protocols that can be carried out thanks to GykoRePower, protocols designed, developed and validated by Prof. Carmelo Bosco.

GykoRePower is meant for everyone who wants add a scientific base to athletic preparation through the quantitative and therefore objective evaluation of the motor task. GykoRePower combines the requirements of accuracy and reliability with technological innovation.

GykoRePower provides the information essential for evaluating athletic preparation in an accurate, repeatable and simple manner. With GykoRePower, monitoring improvement and comparing the performance of athletes is simple and immediate.

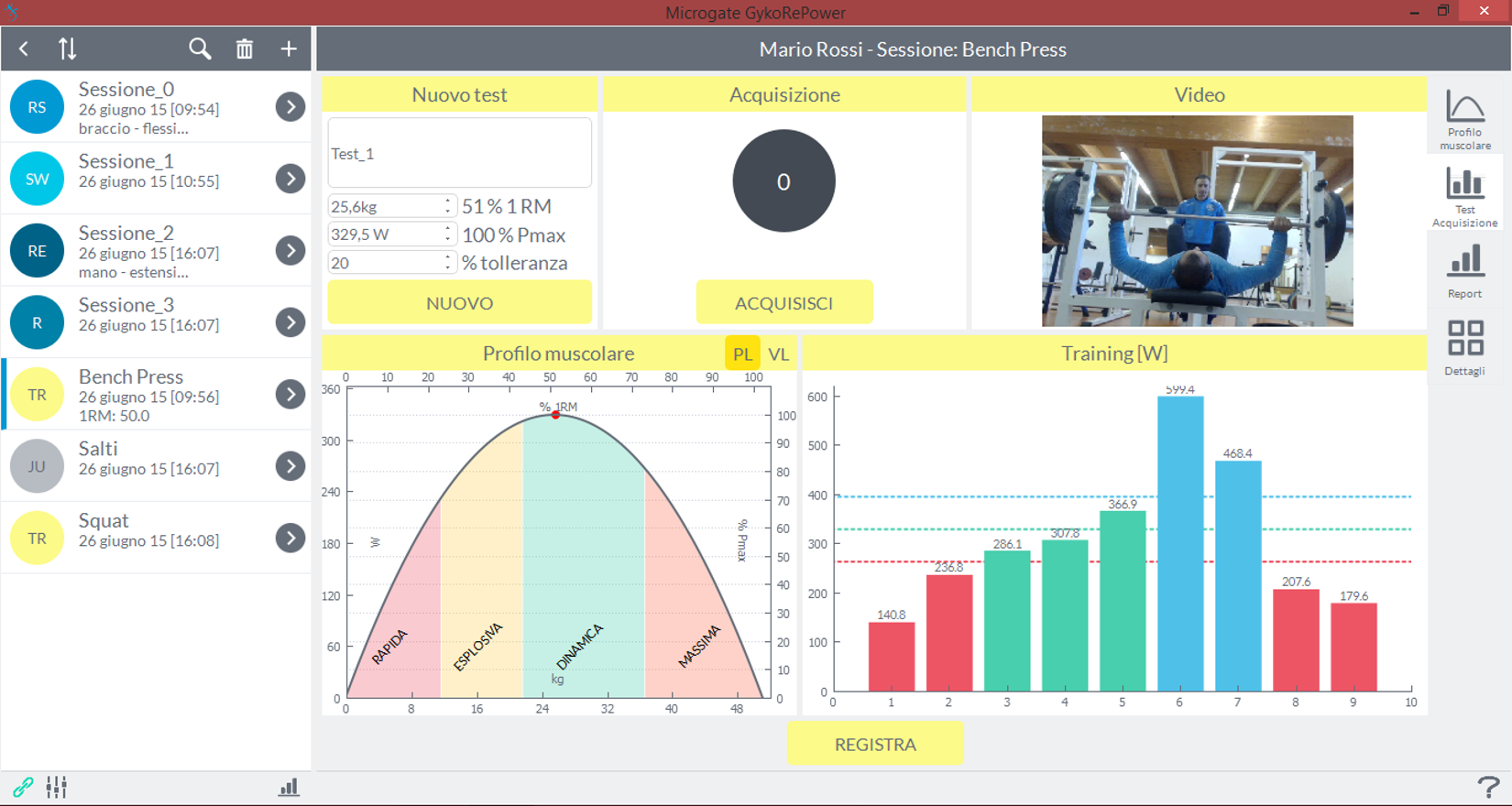

From the measurement of the force impressed on the load, the system is able to measure the power expressed during a specific exercise. With GykoRePower, the trainer can quickly define a training course, initially identifying the various work areas of the athlete automatically and accurately (resistance, dynamism, limit...) and monitor the athlete's progress during the exercise. GykoRePower provides in fact visual and acoustic bio feedback in order to work towards targeted goals.

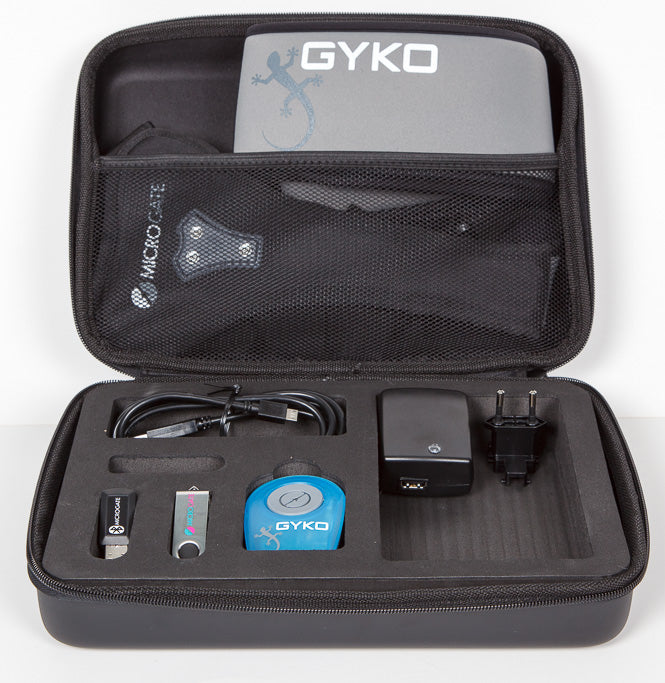

Gyko Includes:

• Gyko Med Sensor
• Microgate Bluetooth Dongle
• Gyko magnetic support
• Supply unit Gyko Sport - SWITCHING OUT 1x5Vdc USB 900mA EU plug for Gyko battery charger
• USB Cable for Witty, Gyko, and accessories
• Gyko vest
• Gyko belt
• Gyko bag
• Gyko leg belt
• Gyko arm belt
• RePower Software
• Made in Italy
