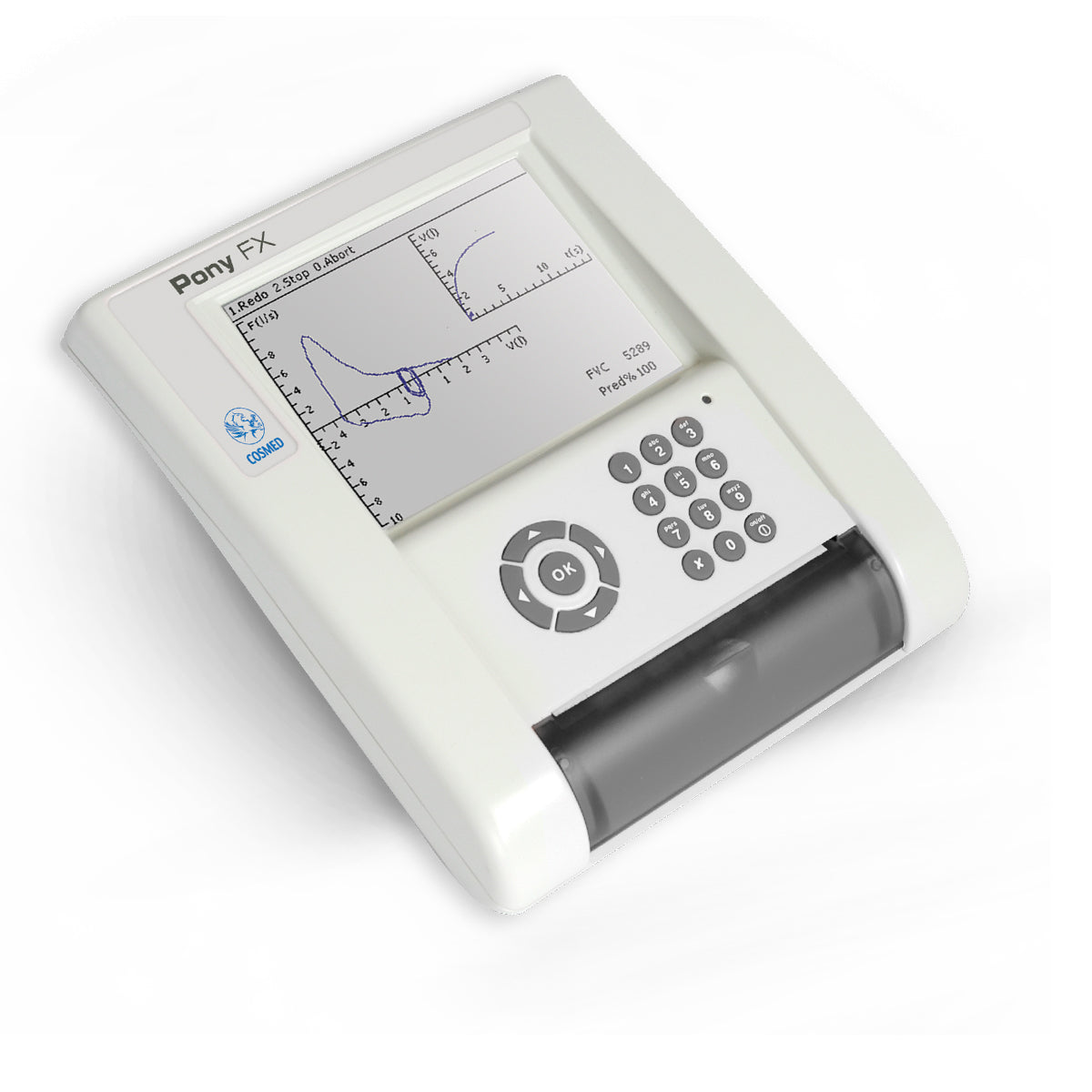

The COSMED Pony FX is the new generation of desktop spirometers developed by COSMED (Made in Italy) for complete spirometry (FVC/SVC, MVV, bronchial provocation) and respiratory mechanics (MIP/MEP, Rocc) testing. With a large colour LCD screen and inbuilt thermal printer, it is possible to perform tests without the need of a computer.

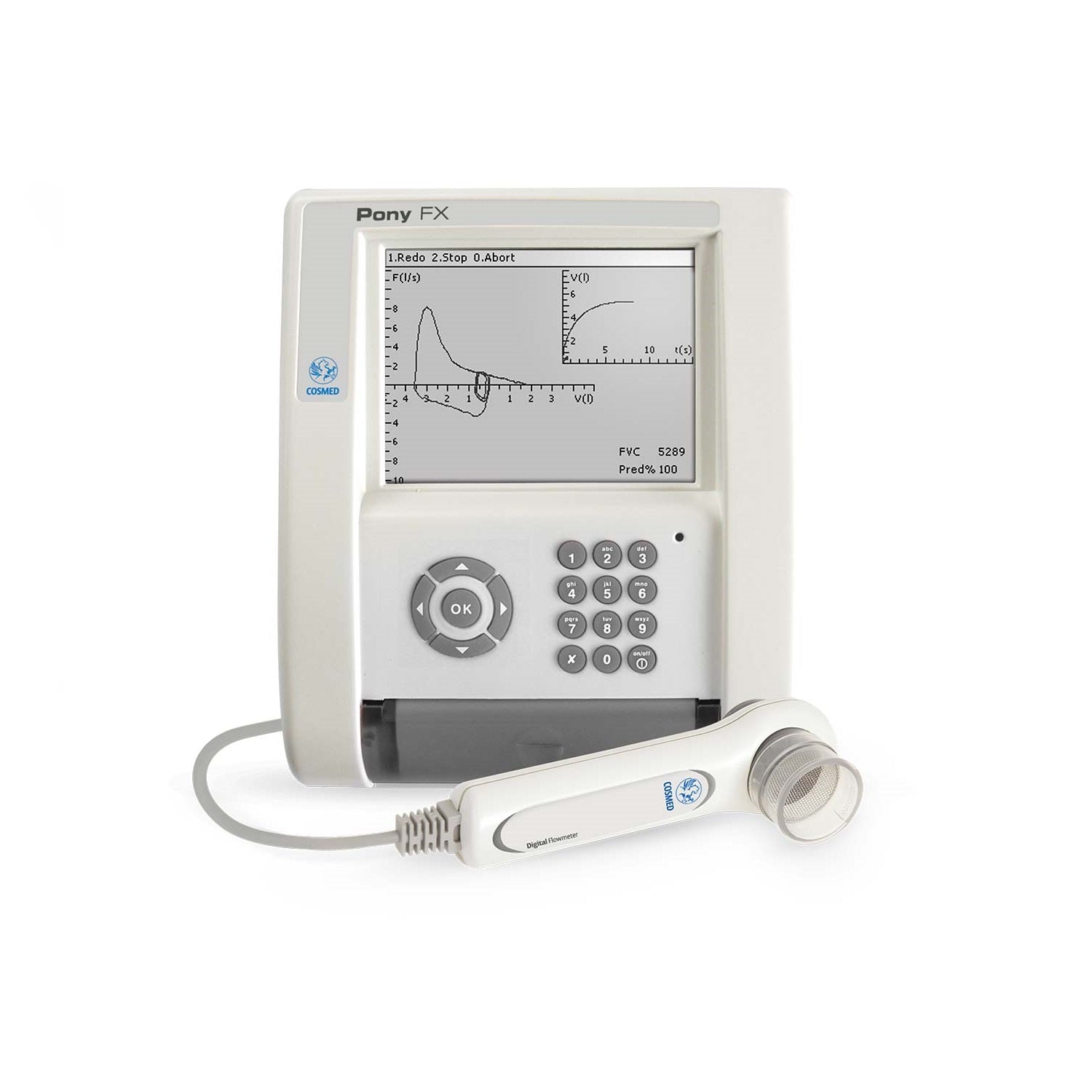

The Pony FX has internal memory, which can store many patients/tests, and comes with a powerful and user-friendly PC software (OMNIA) for data management and real-time PC testing. Pony FX is configured with an accurate and reliable bidirectional digital turbine flowmeter.

Additional optional tests include: Airway Resistance (Rocc/Rint) and Pulse oximetry (SpO2).

Design

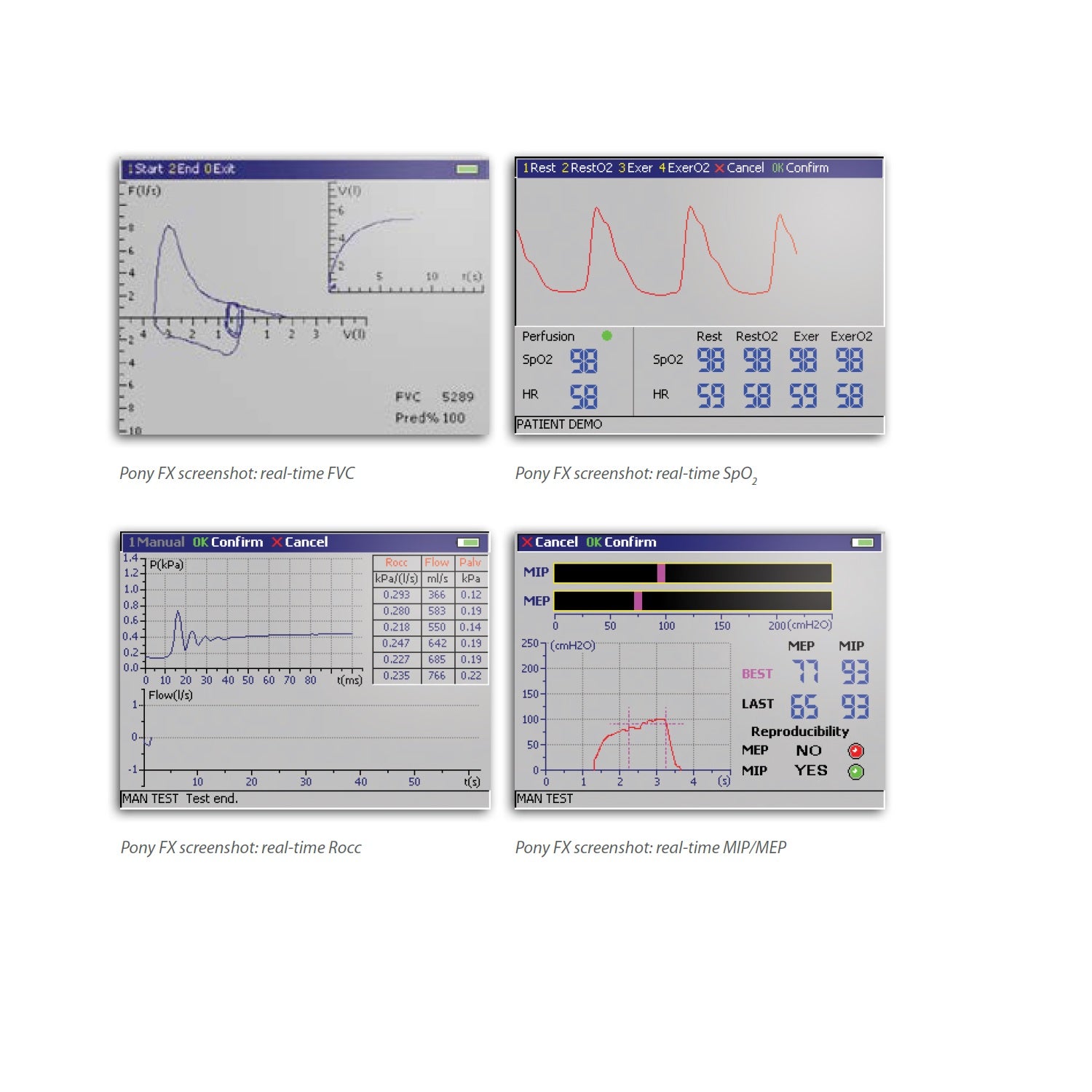

• High quality color LCD display for real time testing
• Integrated 120 mm high speed thermal printer for high quality reports in few seconds
• Compact size (20x23x6cm) and light weight (1.2 kg)
• Alphanumeric keyboard and navigator tool to allow user access to all functions
• Internal memory of up to 600 tests/ patients
• New Li-Ion battery with autonomy of up to 6 hours (charging time 2h10)
• Easy interface with PC and other devices through the ports: USB-A, USB-B, RS 232
• Possibility to print reports without using a computer by connecting directly the Pony FX via USB with a PCL5 compatible printer

Spirometry

• Full spirometry (FVC, SVC, MVV, Pre/post BD)
• New Trial Selection and Quality Control functions (in compliance with ATS/ERS guidelines)
• Innovative pediatric incentivation with selectable effort grade
• Full compliance with “2005 ATS/ERS consensus” (Interpretation, QC, etc.)
• GOLD COPD interpretation on FVC PostBD
• Includes latest Global Lung Initiative (GLI) predicteds (including Z-score)
• ATS, Metacholine-dose, Mannitol and user defined bronchochallenge protocols
• Possibility to download Six Minute Walk
• Main Measured Parameters: FVC • IVC • VC • MVV • VT • FEV1 • FEV6 • FEV1/FEV6 • FEV6/FVC • PEF • PIF •FEV1/FVC • FEF25-75 • FEV1/VC% • %FEV1 • MEF25% • MEF50% • MEF75% • FET 100% • Lung Age • ERV •IRV • VE • Rf • ti • te • ti/t.tot • VT/ti • Best FVC • Best FEV1 • IC

Data Management & Software

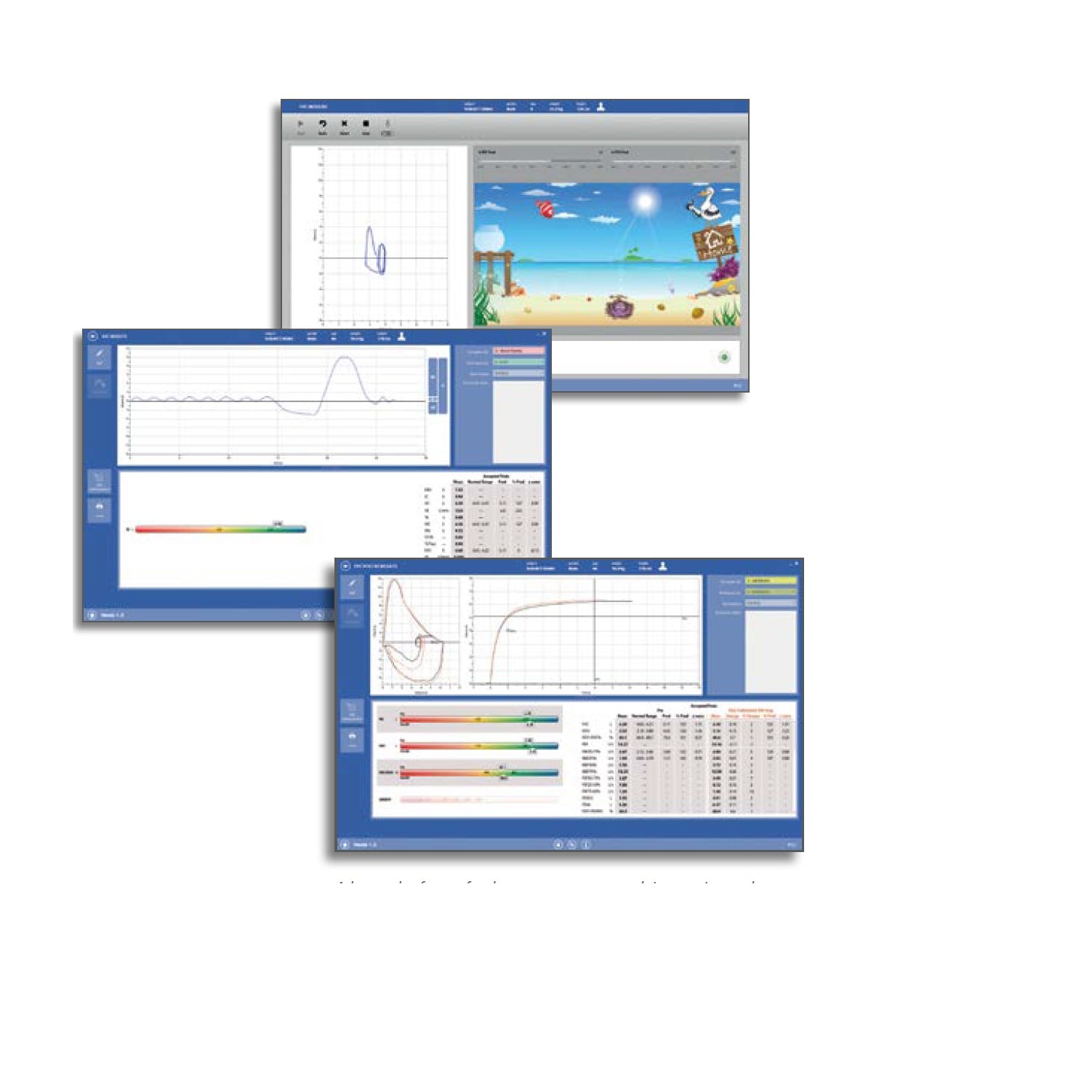

• Spirometry tests can be also performed realtime with Pony FX connected to a PC through the powerful software OMNIA (included in the standard package).
• Innovative user interface, touch screen, easy and self-explanatory
• Compatible with Windows 10
• Graphical data presentation both at screen and on printouts with gauges (pictograms)
• Powerful algorithm automatically elaborating results and providing comprehensive interpretation text strings including numerical results
• Full customizable time-based trends of main measured parameters
• GDT data interface protocol included
• Access and security compliant (according to US HipAA, ISO 27799:2008, EU 95/46/CE and 2002/58/CE)
• Multi-device management (single license for multiple products)
• Advanced network capabilities (Optional). Running on SQL database (both Express or Enterprise).

SKU: PONYFX
